Product Description
Description

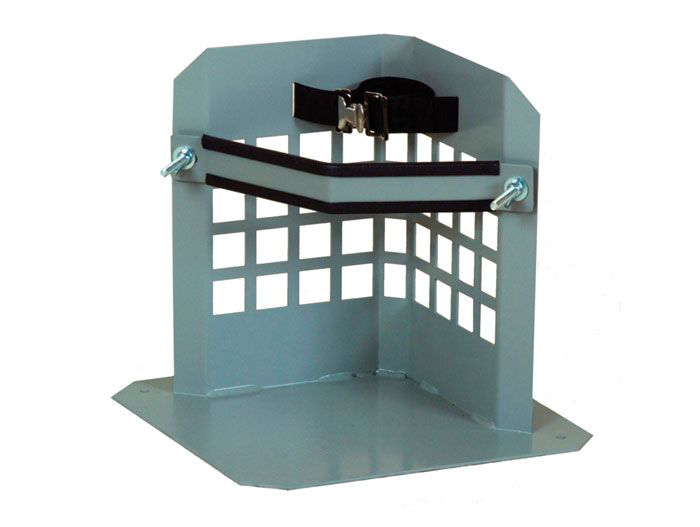

Designed for the safe storage of industrial and commercial use compressed gas cylinders, these storage stands help prevent dangerous tipping situations. Powder-coated to ensure long service life and chemical resistance. Features a 0.187-in (5-mm) thick steel clamping bar protected with an edge bumper guard that attaches to the stand using dual threaded rods and wing nuts. Pre-drilled holes in base for floor mounting with application specific fasteners (not included). Heavy-duty polypropylene support strap, 1.5- x 54-in (38-mm x 1372-mm) and rated at 1138-lb (516-kg), features steel cinch buckle and hold individual cylinders securely against stand. Helps comply with OSHA, NFP1, NFPA 55, and CGA.
Features
- Fully welded construction using 11-gauge (3-mm) steel provides structural integrity and longevity
- Low profile design accepts cylinders from 4- to 10-in (102- to 254-mm) in diameter
Specifications
- CGA: Yes
- Complies with NFPA 1 Fire-Code: Yes
- Cylinder Capacity: 1
- Cylinder Capacity with Max Cylinder Dia: (1) 10 inch
- Material Specifications: Steel
- Minimum Cylinder Diam (in): 4
- Mount Hole Size (inch): 0.406
- Mount Holes: 3
- Mount Type: Floor
- Net Dimensions (W x D x H): 16 x 16 x 15 inches | 406 x 406 x 381 mm
- Net Weight: 21 lbs | 10 kg
- NFPA 55: Yes
- OSHA Compliance: Yes
- Strap Style: Poly Cinch Strap with Steel Buckle and Clamping Bar
- Straps Per Cylinder: 1
Product Videos
Custom Field
Item Type SAFETY
Product Type Gas Cyl Stands/Brckt
Country of Origin USA
