Product Description
Description

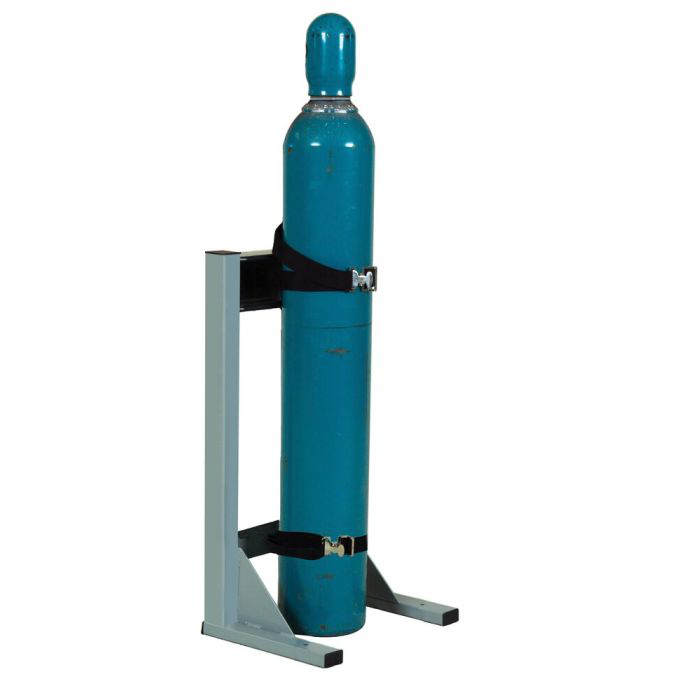

Suitable for over-the-road gas cylinder transportation, these mobile stands accommodate cylinders from 4- to 10-in (102- to 254-mm). Fully welded construction using 11-gauge (3-mm) steel provides structural integrity while the powder-coating provides chemical resistance for a long service lift. Locking post extends up to 66-in (1677-mm) in height. Pre-drilled holes in base designed for required floor mounting with application specific fasteners (not included). For an improved level of safety on any installation, mobile stands include openings to retrofit secondary support chains, one for each strap. Order model 35366 to get optional chain(s). Helps comply with OSHA, NFP1, NFPA 55, and CGA.
Features
- Exclusive bumper guard edging with steel reinforced vinyl protects your cylinders from damage while providing extra grip
- Heavy-duty 1.5- x 54-in (38-mm x 1372-mm) polypropylene support straps, rated at 1138-lb (516-kg), feature steel cinch buckle and hold individual cylinders securely to prevent tipping
- Locking collar and post system adds vise-like holding capability to immobilize the cylinder- use of safety cylinder caps ensures DOT compliance
Specifications
- CGA: Yes
- Complies with NFPA 1 Fire-Code: Yes
- Cylinder Capacity: 1
- Cylinder Capacity with Max Cylinder Dia: (1) 10 inch
- Locking Post Equipped: Yes
- Material Specifications: Steel
- Minimum Cylinder Diam (in): 4
- Mount Hole Size (inch): 0.406
- Mount Holes: 4
- Mount Type: Floor
- Net Dimensions (W x D x H): 16.25 x 10.5 x 41 inches | 413 x 267 x 1041 mm
- Net Weight: 39 lbs | 18 kg
- NFPA 55: Yes
- OSHA Compliance: Yes
- Strap Style: Poly Cinch Strap with Steel Buckle
- Straps Per Cylinder: 2
Product Videos
Custom Field
Item Type SAFETY
Product Type Gas Cyl Stands/Brckt
Country of Origin USA
