Product Description
Description

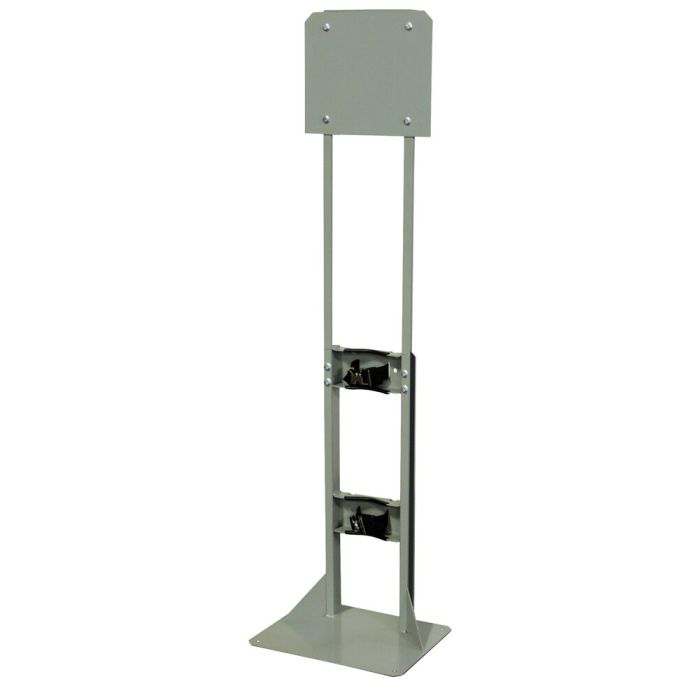

Designed for the safe storage and distribution of industrial and commercial use compressed gas cylinders, these storage stands help prevent dangerous tipping situations. Powder-coated to ensure long service life and chemical resistance. Pre-drilled holes in base for floor mounting with application specific fasteners (not included). Two heavy-duty polypropylene support straps, 1.5- x 54-in (38-mm x 1372-mm) and rated at 1138-lb (516-kg), feature steel cinch buckle and hold individual cylinders securely against integral bracket. For an improved level of safety for any installation, all brackets include openings to retrofit secondary support chains, one set for each cylinder strap location. Helps comply with OSHA, NFP1, NFPA 55, and CGA.
Features
- Accepts cylinders from 4- to 12-in (102- to 305-mm) in diameter
- Exclusive bumper guard edging with steel reinforced vinyl protects your cylinders from damage while providing extra grip
- Securely mount cylinder controls and cross-over devices with integral elevated panels
- Welded construction using 11-gauge (3-mm) steel provides structural integrity and longevity
Specifications
- CGA: Yes
- Complies with NFPA 1 Fire-Code: Yes
- Cylinder Capacity: 1
- Cylinder Capacity with Max Cylinder Dia: (1) 12 inch
- Material Specifications: Steel
- Minimum Cylinder Diam (in): 4
- Mount Hole Size (inch): 0.406
- Mount Holes: 4
- Mount Type: Floor
- Net Dimensions (W x D x H): 18 x 13.75 x 72 inches | 457 x 349 x 1829 mm
- Net Weight: 65 lbs | 29 kg
- NFPA 55: Yes
- OSHA Compliance: Yes
- Process Controls Mounting Rail: Panel
- Strap Style: Poly Cinch Strap with Steel Buckle
- Straps Per Cylinder: 2
Product Videos
Custom Field
Item Type SAFETY
Product Type Gas Cyl Stands/Brckt
Country of Origin USA
