Product Description
The GEARWRENCH family of torque wrenches and torque products offer the latest innovations in torque measurement. The line includes micrometer, tire shop, beam, and electronic torque wrenches and torque multipliers. The micrometer wrenches come available in fixed head and flex head. The fixed head line offers wrenches in 1/4" to 3/4" drives. The flex head wrenches are available in 3/8" and 1/2" drive sizes. The tire shop wrenches feature a rugged tire tread rubber cover on the head intended specifically for checking wheel lug nuts and are available in 3/8" and 1/2" drive sizes. The electronic torque wrenches ensure a precise fastener torque level and are available in either 3/8" and 1/2" drives. The GEARWRENCH line of torque products allow you to complete any job where accurate torque is required.
Features
- Knurled anodized aluminum handle lets you grip the wrench comfortably, helping to reduce hand fatigue
- Meets or exceeds ASME B107.300 standards and specifications
- Midpoint on the handle clearly marked for accuracy
- Pull down torque adjustment collar feature allows you to make quick and easy torque setting changes
- Scale markings are highly visible and easy to read
- Thin profile, sealed, teardrop head design offers improved access and durability for highly effective application
- Torque accuracy of +/- 3% clockwise in the upper 80% range of maximum torque
Specifications
- Alt Scale Increments: 0.11 Nm
- ASME Specification: B107.300
- Case Color: Black
- Certified: No
- Certified Model Number: 85060MCERT
- Coupon Headline: Micrometer Torque Wrenches
- Drive Tang Size: 1/4 in
- Finish: Full Polish Chrome
- Flexible: No
- Foreign Trade Code: 8466100175
- Head Length: 1.61 in
- Head Thickness: 0.54 in
- Head Thickness Less Tang: 0.5 in
- Head Width: 1.1 in
- Included Storage: Blow Mold Case
- Knurled: Yes

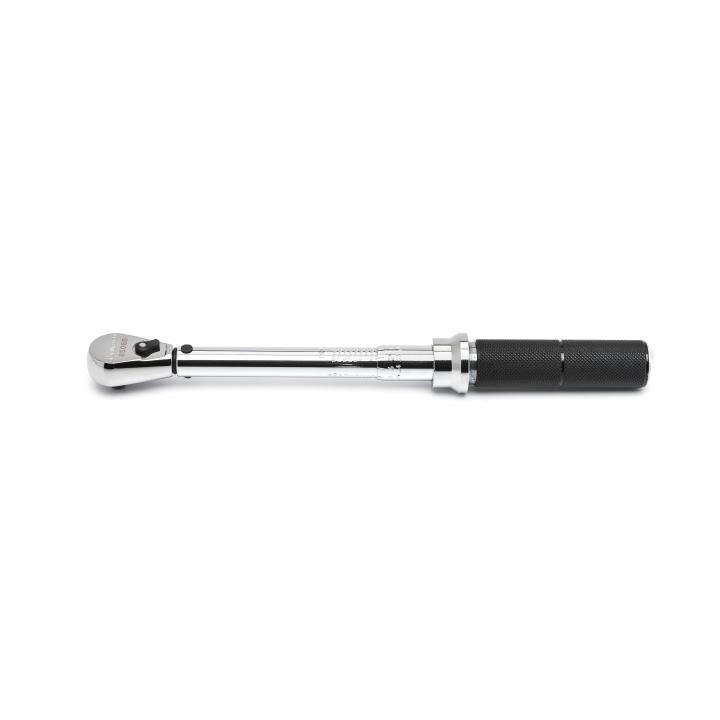

- Long Description: 1/4" Drive Micrometer Torque Wrench 30-200 in-lb.
- Material: Alloy Steel
- Maximum Torque (Alt Scale): 23.16 Nm
- Maximum Torque (Primary Scale): 200 in/lb
- Minimum Torque (Alt Scale): 3.95 Nm
- Minimum Torque (Primary Scale): 30 in/lb
- Overall Height: 1.1 in
- Overall Length: 10.5 in
- Overall Width: 1.1 in
- Packaging: Boxed
- Primary Scale Increments: 1 in/lb
- Set: No
- Table Description: 1/4" Drive Micrometer Torque Wrench 30-200 in/lbs
- Tether Ready: No
- Tooth Count: 22
- Torque Accuracy (20-100% of Full Range): +/- 3% Clockwise
- Type 1: Micrometer
- Warranty: 90 Days Calibration/1 Year on Parts
- Weight: 1.365 lbs
