Product Description
The GEARWRENCH family of torque wrenches & torque products offer the latest innovations in torque measurement. Included in the line are micrometer, tire shop, beam and electronic torque wrenches, as well as, torque multipliers. The micrometer wrenches are available in fixed head and flex head. The fixed head line offers wrenches in 1/4" to 3/4" drives. The flex head wrenches are available in 3/8" and 1/2" drives. The tire shop wrenches feature a rugged tire tread rubber cover on the head intended to specifically be used for checking wheel lug nuts and are available in 3/8" and 1/2" drives. The electronic torque wrenches ensure a more precise fastener torque level and are available in a 3/8" and 1/2" drives. The GEARWRENCH line of torque products allow the user to complete any job where accurate torque is required.
Features
- 1 year limited warranty; calibration accuracy warrantied for 90 days
- 100% steel construction offers lasting strength and durability
- 120XP(TM) head provides a 3 deg ratcheting arc to turn fasteners in narrow spaces
- Enclosed ratchet head design resists dirt infiltration for continuous and efficient execution
- Injection molded case with removable lid and EVA foam insert for secure storage and convenience
- Knurled aluminum handle lets you grip comfortably, while clearly marked midpoint promotes additional accuracy
- Low profile tube, teardrop head, and flush mounted on/off switch allow better access in tight confines
- Meets or exceeds ASME B107.300 and exceeds ANSI specifications on load and cycle NIST Certificate of Calibration included. Certificate of Calibration is the documentation of the actual calibration of the torque wrench and includes the model number, serial number, date, actual readings, type of test equipment, and test equipment calibration standards.
- Scale markings are highly visible and easy to read
- Torque accuracy of +/- 3% CW in the upper 80% of wrench capability delivers high performance
Specifications
- Alt Scale Increments: .11 Nm
- ANSI Specification: Exceeds on Load and Cycle
- ASME Specification: B107.300
- Case Color: Molten Orange
- Certified: Yes
- Country of Origin: TW
- Coupon Headline: 120XP(TM) Certified Micrometer Torque Wrenches
- Drive Tang Size: 1/4 in
- Finish: Full Polish Chrome
- Flexible: No
- Foreign Trade Code: 8466100175
- Head Length: 1.5 in
- Head Thickness: 0.39 in
- Head Thickness Less Tang: 0.25 in
- Head Width: 1 in
- Included Storage: Injection Molded Case with Removable Lid and Foam Insert
- Knurled: Yes

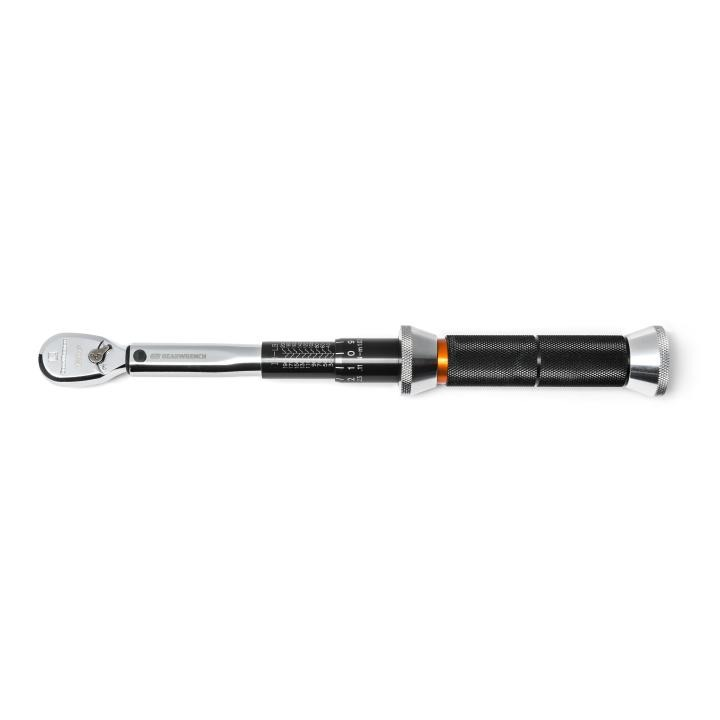

- Long Description: 1/4" Drive 120XP(TM) Certified Micrometer Torque Wrench 30-200 in/lbs.
- Material: Alloy Steel
- Maximum Torque (Alt Scale): 23.16 Nm
- Maximum Torque (Primary Scale): 200 in/lb
- Minimum Torque (Alt Scale): 3.95 Nm
- Minimum Torque (Primary Scale): 30 in/lb
- Overall Height: 1.25 in
- Overall Length: 11 in
- Overall Width: 1.25 in
- Packaging: Sleeve
- Primary Scale Increments: 1 in/lb
- Set: No
- Table Description: 1/4" Drive 120XP(TM) Certified Micrometer Torque Wrench 30-200 in/lbs.
- Tooth Count: 120
- Torque Accuracy (20-100% of Full Range): +/- 3% Clockwise
- Type 1: Micrometer
- Warranty: 90 Days Calibration/1 Year on Parts
- Weight: 1.365 lbs
