Product Description
Description
Protect workers, reduce fire risks, and improve productivity by storing flammable fuels and chemicals in code-compliant safety cabinets. Designed to meet OSHA and NFPA standards, Sure-Grip (R) EX cabinets are constructed of sturdy 18-gauge (1-mm) thick double-wall, welded steel with 1-1/2" (38-mm) of insulating air space for fire resistance. High-performance, self-latching doors close easily and securely for maximum protection under fire conditions. Fail-safe closing mechanism ensures three-point stainless steel bullet latching system works every time. For added security, U-Loc (TM) handle comes with a cylinder lock and key set or accepts an optional padlock. Haz-Alert (TM) reflective warning labels are highly visible under fire conditions or during power outages when illuminated with a flashlight. Patented SpillSlope (R) galvanized steel shelves direct spills to back and bottom of a leakproof 2" (51-mm) bottom sump. They adjust on 3" (76-mm) centers for versatile storage. Cabinets also feature dual vents with flame arresters, four adjustable self-leveling feet, grounding connector, and trilingual warning label. Durable lead-free epoxy/polyester powder-coat finish provides excellent chemical resistance. Manual-close door(s) opens to a full 180 degrees and self-latches when pushed closed. Self-close door(s) shuts and latches automatically when a fusible link melts at 165 deg F (74oC) under fire conditions. Unique, concealed self-closing mechanism offers obstruction-free access to contents. All door styles meet OSHA and NFPA 30; self-close door styles also meet NFPA 1 and the International Fire Code. Most cabinets are FM approved and all come with a ten-year warranty. Use alone or alongside larger cabinets for expanded storage when floor space is limited. The standard slimline cabinet is 18" (457-mm) deep and fits flush alongside a 45-gallon (170-L) cabinet. The deep slimline cabinet is 34" (864-mm) deep and fits alongside a 60- or 90-gallon (227- or 341-L) cabinet. Both cabinets measure only 23-1/4" (591-mm) wide. These cabinets have all the great features and benefits of our classic cabinets as outlined below.
Features
- Ideal when space is tight
- Meet safety codes
- Multiple color options available
- Protect workers
- Reduce fire risks
- Ten-year warranty
Specifications
- Adjustable Shelves: Yes
- Capacity: 22 gallon
- Color: Yellow
- Complies with NFPA Code 30: Yes
- Depth: 18

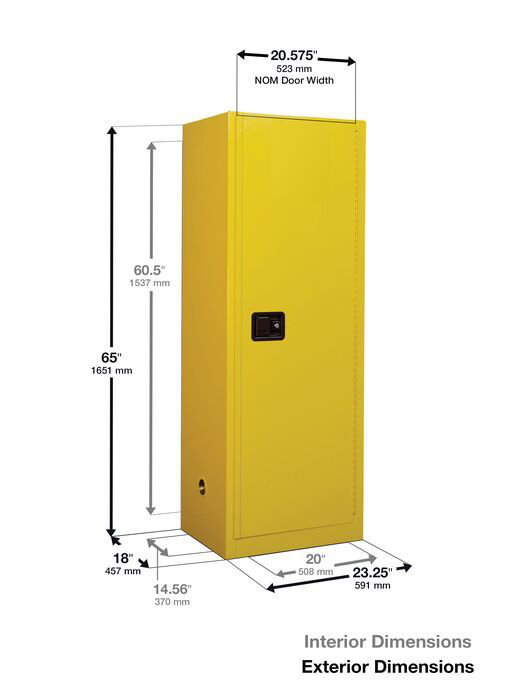

- Dimensions, Exterior: 65" H x 23.25" W x 18" D | 1651mm H x 591mm W x 457mm D
- Dimensions, Interior: 60.5" H x 20" W x 14.6" D | 1537mm H x 508mm W x 370mm D
- Door Type: Manual
- FM Approval: Yes
- Height: 65 Inches
- Liter Capacity: 83
- Material Specifications: 18-Gauge CR Steel
- Net Weight: 176.0 lbs | 79.8 kg
- Number of Doors: 1
- Number of Shelves: 3
- OSHA Compliance: Yes
- Width: 23.25 Inches
