Product Description
Description

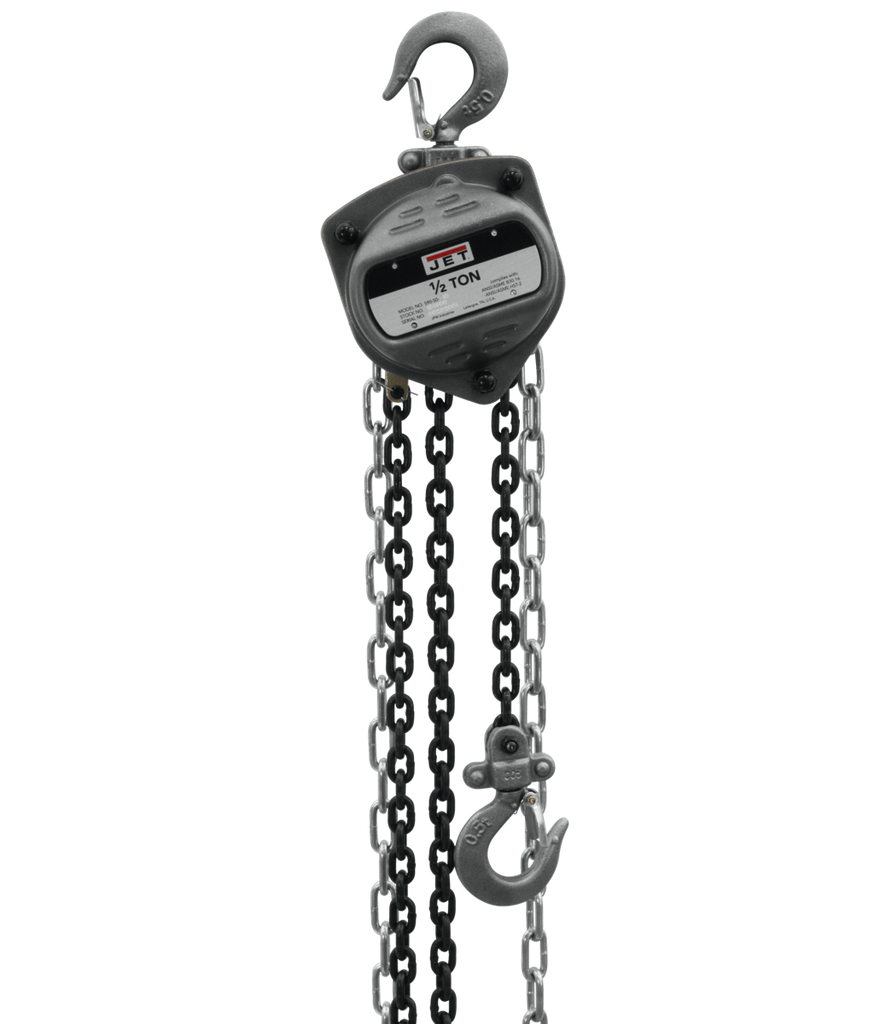

JET(R) S90 Series Hand Chain Hoists were designed with all steel construction to ensure reliability and durability to perform in light-duty industrial applications. Easily maintained and serviced, the JET(R) S90 is available in capacities from 1/2 ton to 10 ton and standard lifts of 10, 15, 20, and 30 feet (custom lifts available). The JET(R) S90 is the ideal contractor grade hoist.
Features
- Grade 80 black oxide coated load chain for added durability
- Heat Treated Load Plates
- Industrial rated alloy steel hooks rotate 360 degrees for easy rigging and slowly stretch to indicate an overload situation
- Intended for the harshest environments, the heat treated load plates and case hardened corrosive resistant internal parts extend the life of the hoist
- Needle bearings support the load sheave to increase efficiency and promote smooth operation
- Secured with Allen screws and lock nuts, the cast-steel safety latches are more durable than stamped steel latches and will not bend out of compliance with lifting regulations
- The Weston style double ratchet pawl brake design splits the load to opposite sides of the ratchet gear for greater load security and increased safety
- The smaller body and lightweight design are ideal for confined areas and low headroom applications
Specifications
- Capacity (Lbs.): 1100.0000
- Country of Origin: CN
- Hand Chain To Lift Load 1 ft.: 32
- Headroom (In.) - TS_14: 11
- Height: 6.7
- Lbs. of Pull to Lift Capacity: 58.0000
- Length: 10.9
- Lift (Ft.): 15.0000
- Load Capacity (Tons): 1/2
- Load Chain Dimensions dia/mm): 5 x 15
- Overload Protection: No
- Warranty: Lifetime
- Weight: 24.0
- Width: 7.3
Product Videos
Custom Field
Item Type POWRTOOL
Product Type Hand Chain Hoist
Country of Origin CN
Length 10.9 in
Width 7.3 in
