Product Description

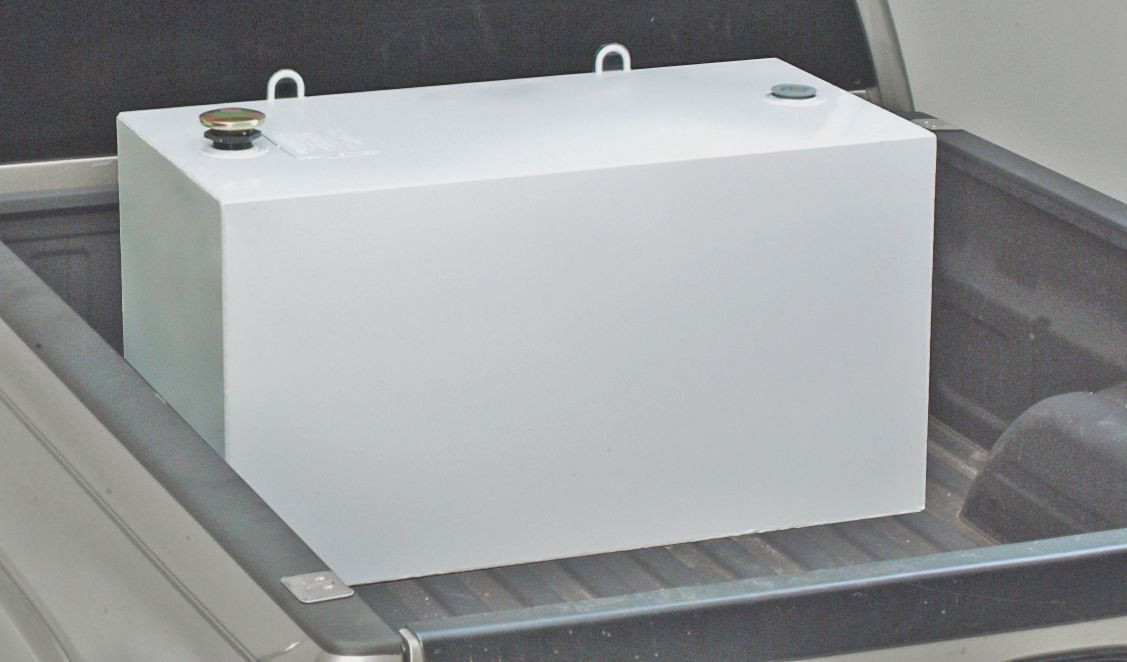

JOBOX tanks feature 14-gauge construction for long-term durability. Internal baffles reinforce the high-strength design and control the flow of the contents when moving. JOBOX models 498000 and 498002 are made for short bed trucks - including trucks with 4-door cabs. The unique design has extended sides above both wheel wells to increase the capacity. All tanks are pressure tested for leaks.
Features

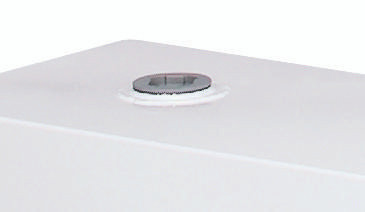

- 2" NPT reinforced bungs allow mounting a pump on either side of the tank
- Built-in lifting rings to assist with lifting and moving an empty tank
- Drain plug allows for safe drainage of combustible liquids
- Heavy-duty brackets to secure the tank to the truck bed

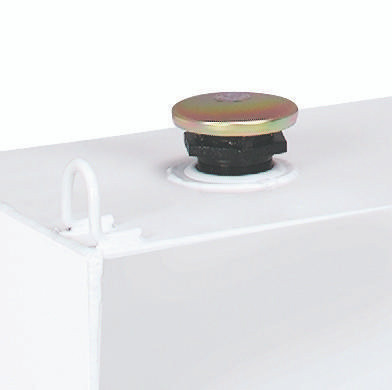

- Lockable filler cap and coupler prevent excessive pressure build up
- Safety fill capacity allows space for the contents to expand in warm weather

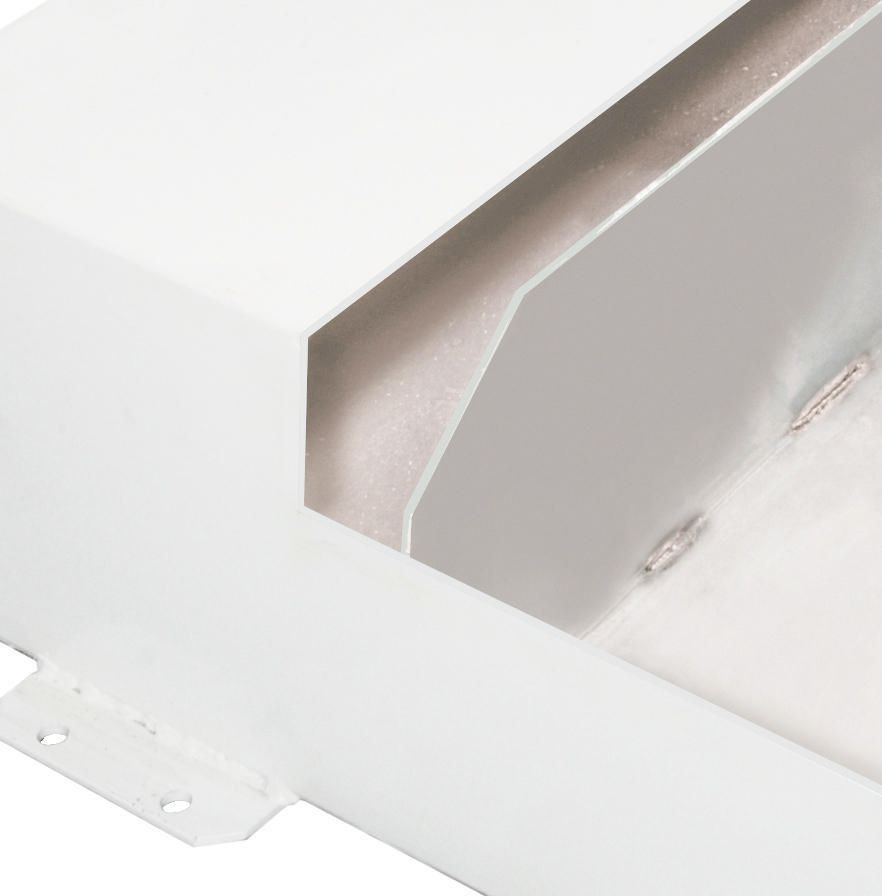

- Tanks have internal baffles for extra strength and to control the flow of contents when moving
Specifications
- A: 45.63 in
- Approximate Shipping Weight: 145.0 lb
- B: 24 in
- C: 23.25 in
- Capacity: 100 gal (US)
- Color: White
- Country of Origin: US
- Coupon Headline: Steel Transfer Tanks
- D: N/A
- E: N/A
- Finish: Powder Coating
- Foreign Trade Code: 8708295160
- Handle Type: Lifting Ring
- Handled: Yes
- Height: 24 in
- Length: 45.63 in
- Lock: Pad Lock Release Cap (Padlock Not Included)

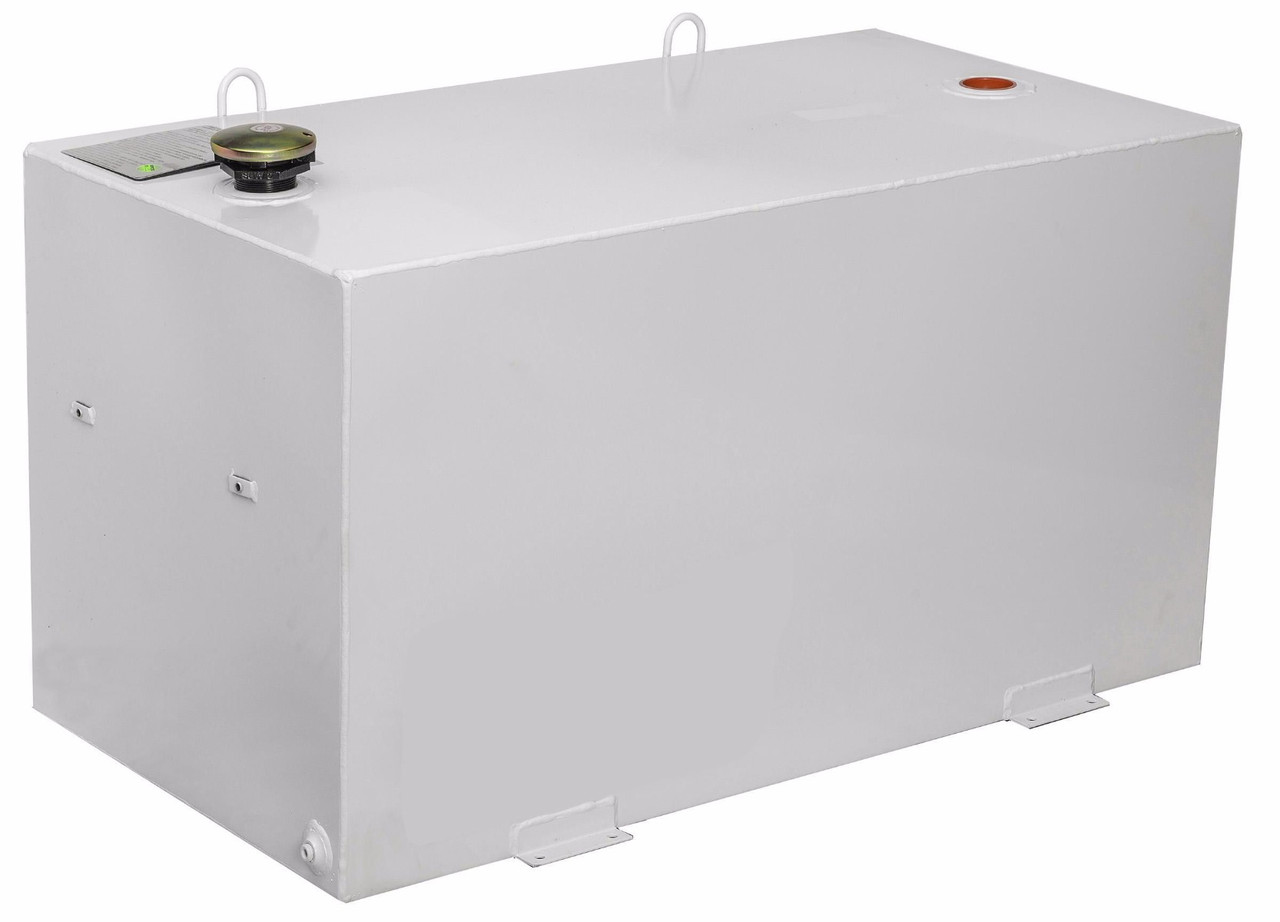

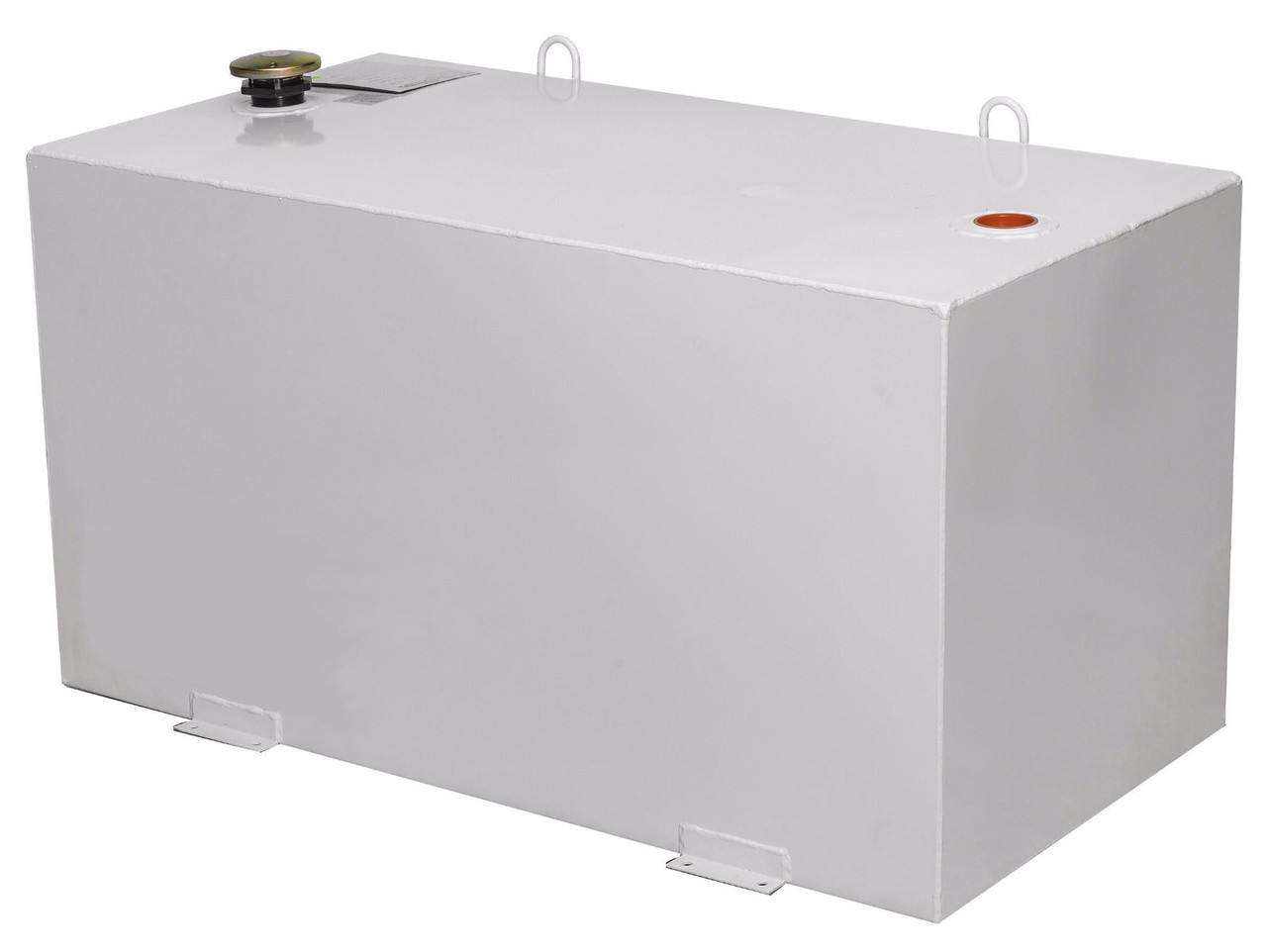

- Long Description: 100 Gallon White Rectangular Steel Liquid Transfer Tank for Trucks
- Material: Steel
- Maximum Fill (Gals): 107 gal (US)
- Packaging: Boxed
- Safe Fill (Gals): 96 gal (US)
- Set: No
- Shape: Rectangle
- Shipping Cu. Ft.: 17.1 ft3
- Table Description: 100 Gallon White Rectangular Steel Liquid Transfer Tank for Trucks
- Type 1: Transfer Tank
- Warranty: 1 Year
- Weight: 140.000 lbs
- Width: 23.25 in
Product Videos
Custom Field
Item Type MATHANDL
Country of Origin US
Length 45.63 in
Width 23.25 in
Material Steel
