Product Description
Description

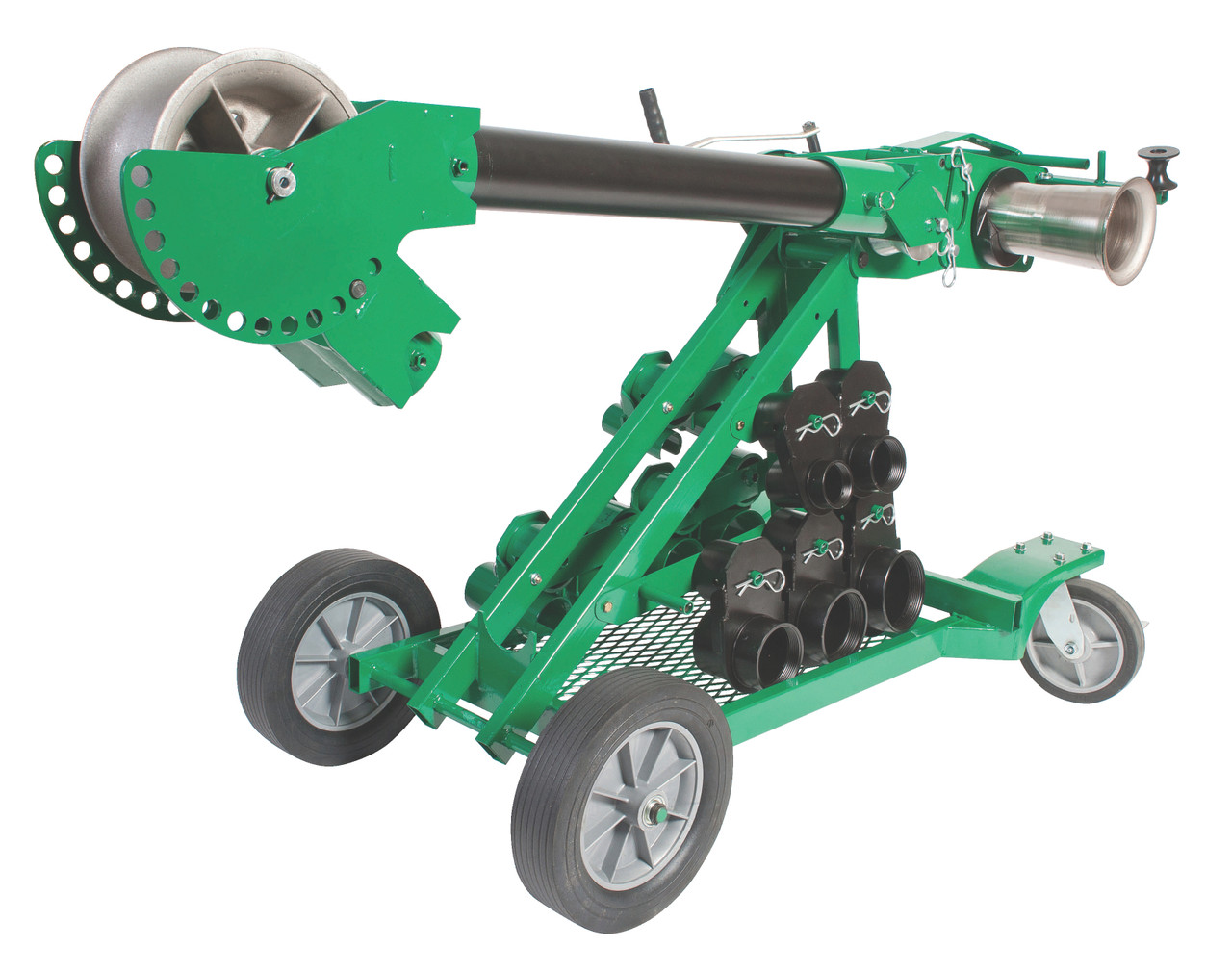

UT10 Package with Mobile Versi Boom
Features
- 2 Speed Ultra Tugger (UT10-2S) is a one-stop-shop - The only 2 speed puller on the market that can shift from high speed/low load pulling to low speed/high load pulling with a simple double tap motion on the foot pedal control switch
- 2-Speed motor that delivers the fastest pulling time for all pulling needs over the widest (10000 LB) range
- Easy control features for increased productivity - On-board force gauge provides visual communication of pulling force and speed changes
- Strong, rugged motor designed specifically for both big and small cable pulling applications up to 10000 LB
- The no-load high speed is 16 FT/MINT and is best suited for loads up to 4000 LB where the speed will be 12 FT/MINT
- The no-load low speed is 9 FT/MINT and can be used on loads up to 8000 LB where the speed will be 6 FT/MINT, or a momentary peak capacity of 10000LB
- Use for cable pulls requiring high as well as low pulling loads
Specifications
- Accessory: 00563 Adapter Weldment - 2.000 (UT8), 00565 Adapter Weldment - 3.000 (UT8), 00567 Adapter Weldment - 4.000 (UT8), 00610 Adapter Weldment - 5.000 (UT8)
- Amperage Rating: 20 Amp
- Cable Type: Electrical Cable
- Capacity: The no-load low speed is 9 FT/MINT and can be used on loads up to 8000 LB where the speed will be 6 FT/MINT, or a momentary peak capacity of 10000LB
- Country of Origin: US
- Load: 0 - 6500.000 LB (0 - 28.900 KN) Continuous Operation, 6500.000 - 8000.000 LB (28.900 - 35.600 KN) 15 Minutes ON/15 Minutes OFF, 8000.000 - 10000.000 LB (35.600 - 44.500 KN) Momentary
- Mounting: Mobile versi Boom
- Sub Brand: Ultra Tugger
- Type: Puller Assembly
- Voltage Rating: 115 Volts
Product Videos
Custom Field
Item Type Other
Product Type 10,000 Lb Pullers
Country of Origin US
