Product Description
Description

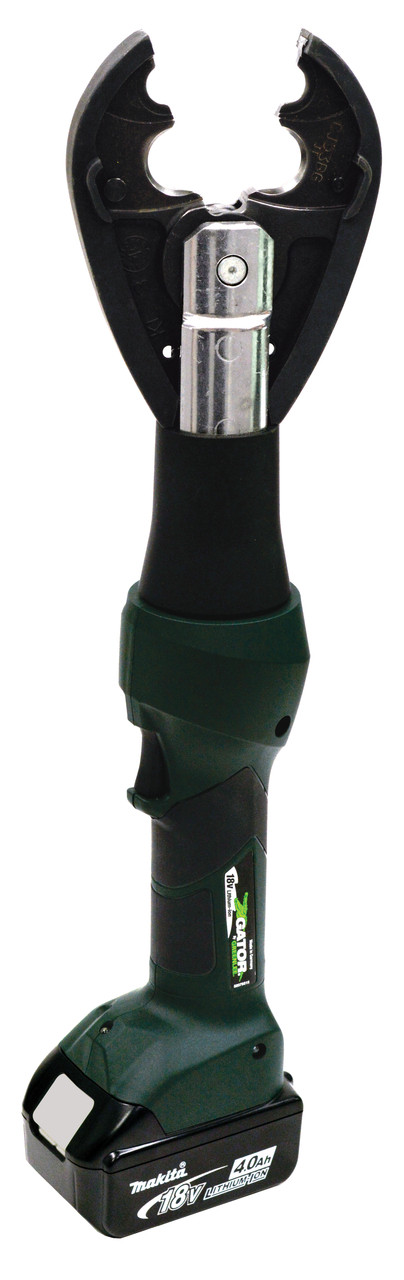

6 Ton Crimper, Li-Ion, Standard, CJD3BG, 120V
Features
- Equipped with Bluetooth(TM) Communication enabled via the Greenlee Gator Eye app. Features LED display screen communicating pressure and battery levels as well as tool diagnostics with real-time tool feedback.
- In-line tool style is lightweight and very easy to control
- The EK425LX is operated with one hand, leaving the other hand free to position the cable and connector
- The EK425LX will complete about 325 crimps per battery charge on 4/0 AWG splices
- The crimping jaws open wide to fit easily over connectors
- To help prepare for a crimp, the jaws can be jogged closed until they just grip the connector, allowing the operator to position the cable in the connector before finishing the crimp
- When a crimp is fully completed, the EK425LX signals the operator by automatically opening the jaws
Specifications
- Connector Type: Service entrance connectors, H-Taps, Tension splices, Jumper splices, Stirrups, Color coded lugs & splices
- Country of Origin: DE
- Crimping Capacity: Connector 10-1/0 AWG 5/8 IN Service Entrance Connectors, 1/0-4/0 AWG 0.840 Service Entrance Connectors, 6 - 4/0 AWG Aluminum H Taps, 10-2 AWG Copper H Taps, 6-2/0 AWG Copper Tension Splices, 6-4/0 AWG All Aluminum Tension Splices, 4-1/0 AWG One Piece ACSR
- Crimping Force: 12,000 lbs. (53 kN)
- Handle Type: In-Line Style with over molded rubber grip
- Overall Length: 18.5 IN (470mm)
- Standard: C/US UL Listed
- Sub Brand: Gator
- Type: Die style crimper
- Wire Size: Connector 10-1/0 AWG 5/8 IN Service Entrance Connectors, 1/0-4/0 AWG 0.840 Service Entrance Connectors, 6 - 4/0 AWG Aluminum H Taps, 10-2 AWG Copper H Taps, 6-2/0 AWG Copper Tension Splices, 6-4/0 AWG All Aluminum Tension Splices, 4-1/0 AWG One Piece ACSR
Product Videos
Custom Field
Country of Origin DE
Item Type POWRTOOL
Product Type Battery - Under 6 Ton
Length 18.5 IN (470mm)
