Product Description
Description

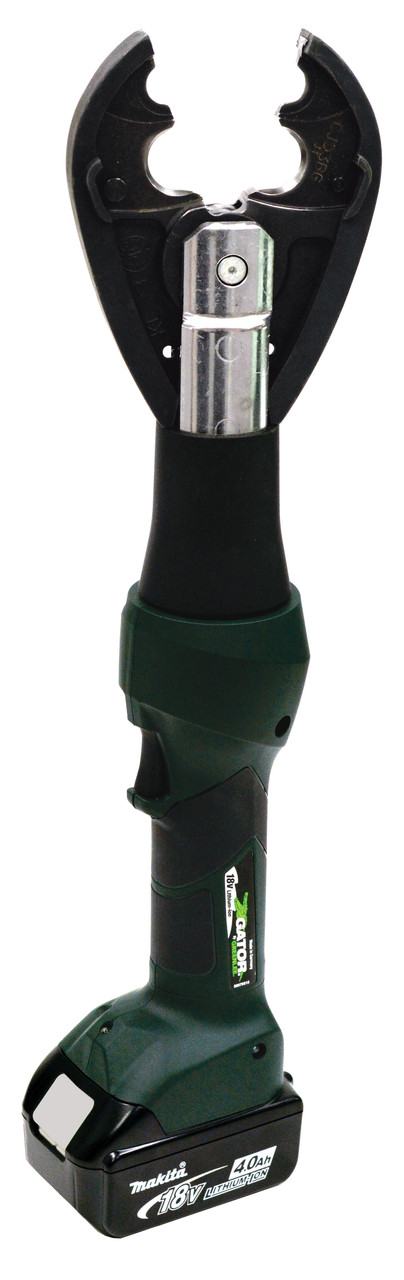

6 Ton Crimper, Li-Ion, Standard, CJD3, 120V
Features
- In-line tool style is lightweight and very easy to control
- Intelligent Crimping System Technology includes a pressure sensor that monitors the crimping force of each crimp and provides the operator a visual and audible alert if the force is below specifications
- The EK425LX is operated with one hand, leaving the other hand free to position the cable and connector
- The EK425LX will complete about 325 crimps per battery charge on 4/0 AWG splices
- The crimping jaws open wide to fit easily over connectors
- This cable crimper comes equipped with Bluetooth(TM) Communication enabled via the Greenlee Gator Eye app. Features LED display screen communicating pressure and battery levels as well as tool diagnostics with real-time tool feedback to give the lineman as much useful data as possible.
- To help prepare for a crimp, the jaws can be jogged closed until they just grip the connector, allowing the operator to position the cable in the connector before finishing the crimp
Specifications
- Connector Type: Service entrance connectors, H-Taps, Tension splices, Jumper splices, Stirrups, Color coded lugs & splices
- Country of Origin: DE
- Crimping Capacity: Connector 10-1/0 AWG 5/8 IN Service Entrance Connectors, 1/0-4/0 AWG 0.840 Service Entrance Connectors, 6 - 4/0 AWG Aluminum H Taps, 10-2 AWG Copper H Taps, 6-2/0 AWG Copper Tension Splices, 6-4/0 AWG All Aluminum Tension Splices, 4-1/0 AWG One Piece ACSR
- Crimping Force: 12,000 lbs. (53 kN)
- Handle Type: In-Line Style with over molded rubber grip
- Overall Length: 18.5 IN (470mm)
- Standard: C/US UL Listed
- Sub Brand: Gator
- Type: Die style crimper
- Wire Size: Connector 10-1/0 AWG 5/8 IN Service Entrance Connectors, 1/0-4/0 AWG 0.840 Service Entrance Connectors, 6 - 4/0 AWG Aluminum H Taps, 10-2 AWG Copper H Taps, 6-2/0 AWG Copper Tension Splices, 6-4/0 AWG All Aluminum Tension Splices, 4-1/0 AWG One Piece ACSR
Product Videos
Custom Field
Item Type Other
Product Type Battery - Under 6 Ton
Country of Origin DE
Length 18.5 IN (470mm)
