Product Description

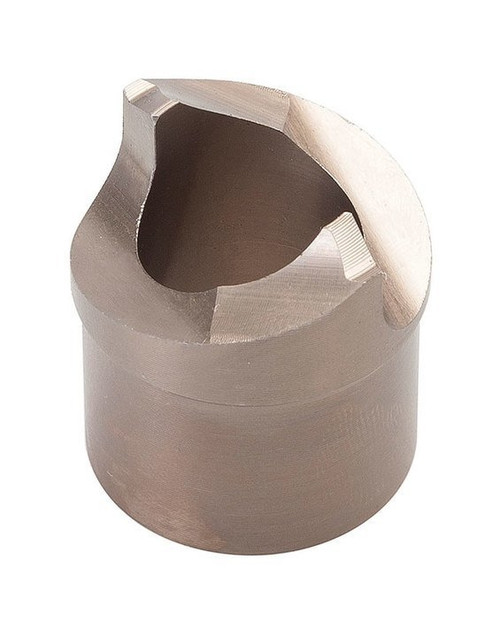

1-7/32" Speed Punch(R) Die
Features
- Available for Mild Steel - 1/2" to 4" conduit size
- No-Thread punch design eliminates cross-threading.
- SPEED PUNCH(R) saves time and money with every hole.
- Up to 3X's faster setup and disassembly.
Specifications
- Capacity Mild Steel: Max - 10 gauge (3.0 mm).
- Country of Origin: US
- Diameter: Actual hole size - 1-7/32'' (30.5 MM)
- Draw Stud: Std. Draw Stud - 7212SP11 (3/4'' X 4.77'').
- Draw Studs: Alt. Draw Stud (Long) - 7212SP12 (3/4'' x 5.63'') - For use with 746 Hydraulic Ram.
- Driver: Use with Greenlee Punch Drivers - LS50L - Battery-Powered Driver, or Hydraulic Drivers -10383 - QUICK DRAW(R) FLEX, 34288 - QUICK DRAW(R) STANDARD, 33786G - QUICK DRAW 90(R), or 746 HYDRAULIC RAM & 767 PUMP
- Material: Black Oxide Finish
- Minimum Pilot Hole: 7/8'' (22.2 mm)
- Operation: Must be used with other SPEED PUNCH(R) System components.
- Shape: Round
- Short Description: DIE, 1-7/32'' (30.5MM) DIA.,SPEED PUNCH(TM) SYSTEM
- Sub Brand: SPEED PUNCH(R)
- Type: Knockout Punches
- Weight: 0.70 lbs. (0.32 kg)
Product Videos
Custom Field
Item Type Other
Product Type Speed Punch System
Country of Origin US
Diameter Actual hole size - 1
Material Black Oxide Finish
