Product Description
Description

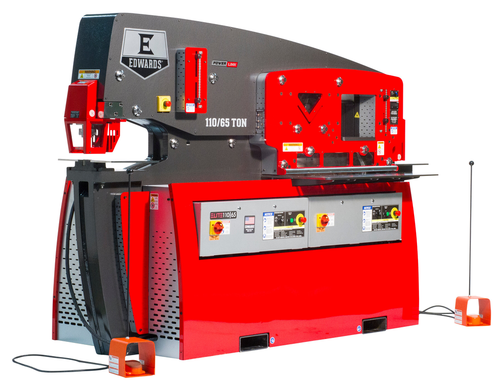

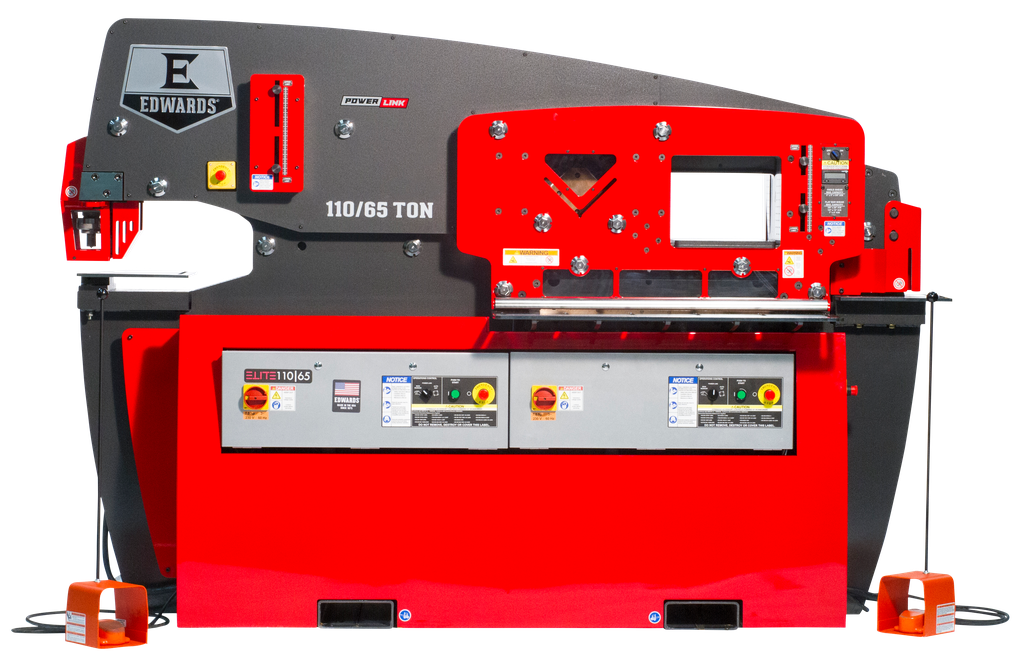

Designed for simultaneous use by two operators, the ELITE 110/65 Ton Ironworker contains two independent power plants. This machine includes five workstations: a punch station with oversized throat depth, a 24" wide flat bar shear, angle shear, coper notcher, and an open cavity that accepts four optional attachments. ELITE Ironworkers have premium features integrated into their design to maximize efficiency and increase productivity. The Hydraulic Hold-Down, Roller Encoder Measuring System, Swing-Away Stripper Assembly, and Quick Change Punch Assembly are designed to increase accuracy and save production time. Punches are easily changeable, long-lasting, and available from 1/8" to 4" diameters along with square, oblong, hex, metric, and custom shapes. The Angle Shear blades have 2 corner radii and are made of precision tool steel with 2 cutting edges, while the Flat Bar Shear blades are made of precision machined, high-quality tool steel with 4 cutting edges. The exclusive PowerLink(TM) System increases your capabilities by turning your Ironworker into a power source for our line of Hydraulic Tools.
Features
- ANSI B11.5-1988(02) Compliant Guarding
- Adjustable electric stoke control
- Bright LED lights increases visibility
- Central Lubrication System simplifies Ironworker maintenance
- Durable, heavy-duty Made in USA steel construction
- ETL Certified Controls
- Integrated Lock-out/Tag-out system with multiple location E-Stops (foot pedal, control panel & Punch workstation) for added safety
- The nickel-plated Premium Gauging Tables provide a large work area and add precision, speed and repeatability to your punch projects
- Vertical movement produces even pressure resulting in precise punching and shearing with minimal distortion that results in extended tooling life
Specifications
- Amps - jpw_amps: 8
- Angle Shear Max Capacity (In.): 5 x 5 x 3/8
- Angle Shear Max Capacity 3/8": 5 x 5
- Angle Shear Work Height (In.): 44
- Coper Notcher Max Capacity (In.): 2-1/2 x 6 x 3/8
- Coper Notcher Work Height (In.): 35-5/8
- Country of Origin: US
- End User Sellable: No
- Flat Bar Shear Max Capacity 1": 4
- Flat Bar Shear Max Capacity 1/2": 14
- Flat Bar Shear Max Capacity 3/8": 24
- Flat Bar Shear Max Round (In): 1
- Flat Bar Shear Max Round Capacity (In.): 1
- Flat Bar Shear Max Square (In): 1
- Flat Bar Shear Rating (Tons): 65
- Flat Bar Shear Work Height (In.): 33-1/2
- Height: 72
- Hydraulic Pump (GPM): 10-1/2
- Hydraulic Reservoir (Gal.): 17.0000
- Hydraulics (GPM): 10-1/2
- Hydraulics (PSI): 3000.0000
- Length: 48
- Motor (HP): 7.5 HP 3 ~ 575V
- Motor Amps: 8
- Motor Speed (RPM): 1770
- Package Name: The Edwards ELITE 110/65 Ton Ironworker, Dual Operator, ELITE, Universal Open Tooling Station, Hydraulic Accessory Power Pack
- Product Dimensions (In.): 61-9/16 x 44-7/8 x 65-1/8
- Punch Open Height (In): 9-3/4
- Punch Shut Height (In): 6-9/16
- Reservoir (Gal.): 17
- Valve Pressure (PSI): 3000.0000
- Weight: 8580
- Width: 96
