Product Description

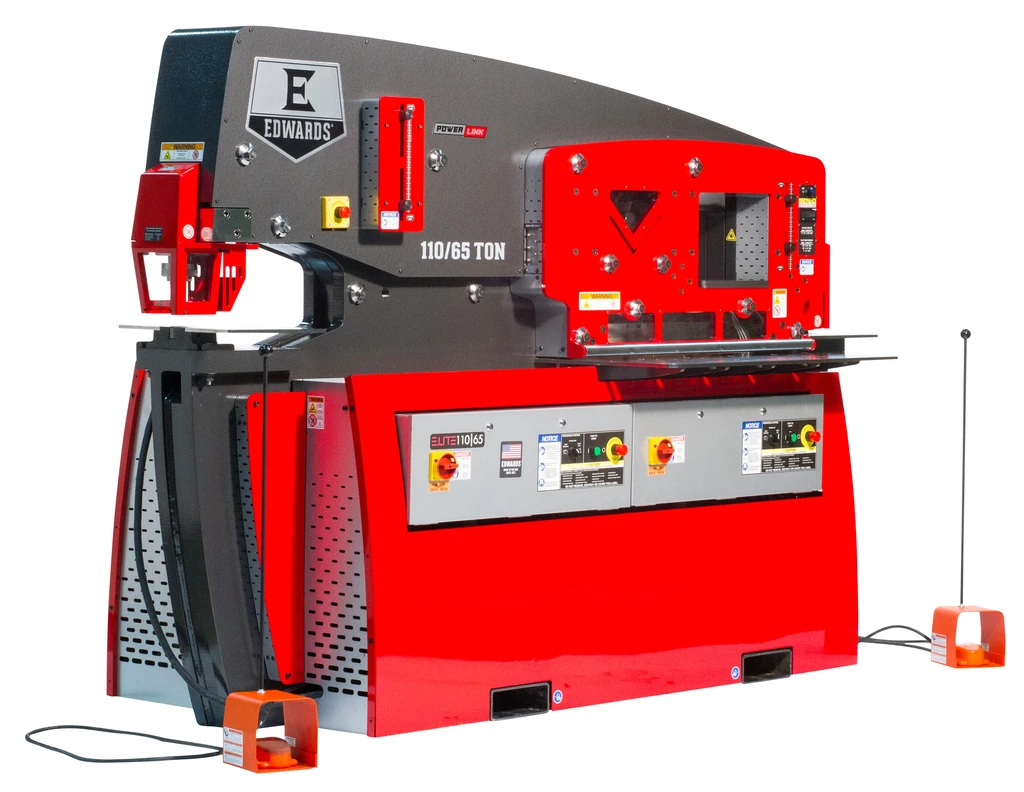

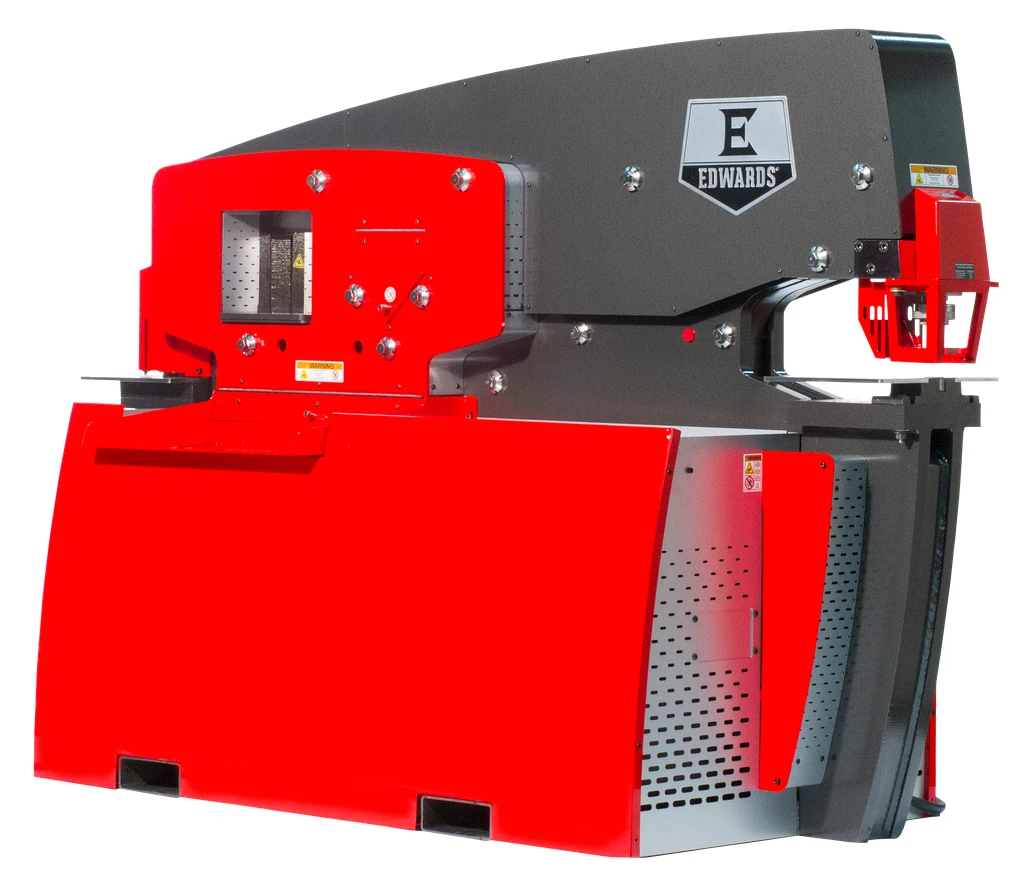

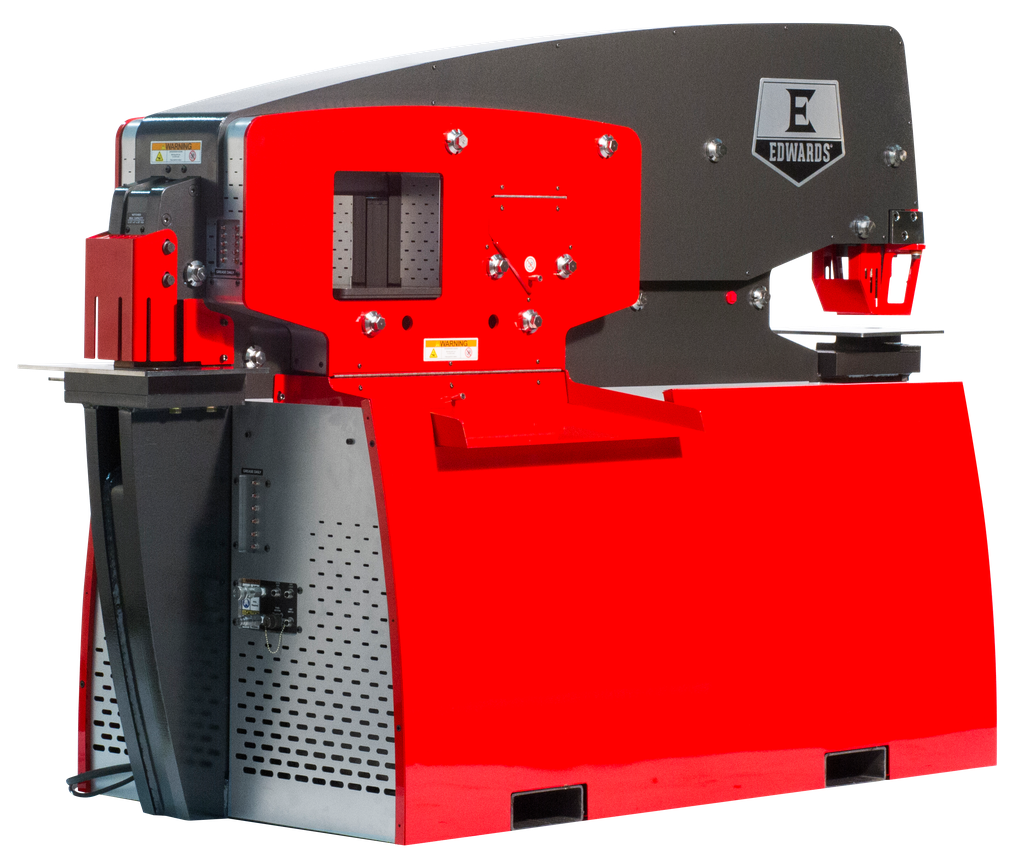

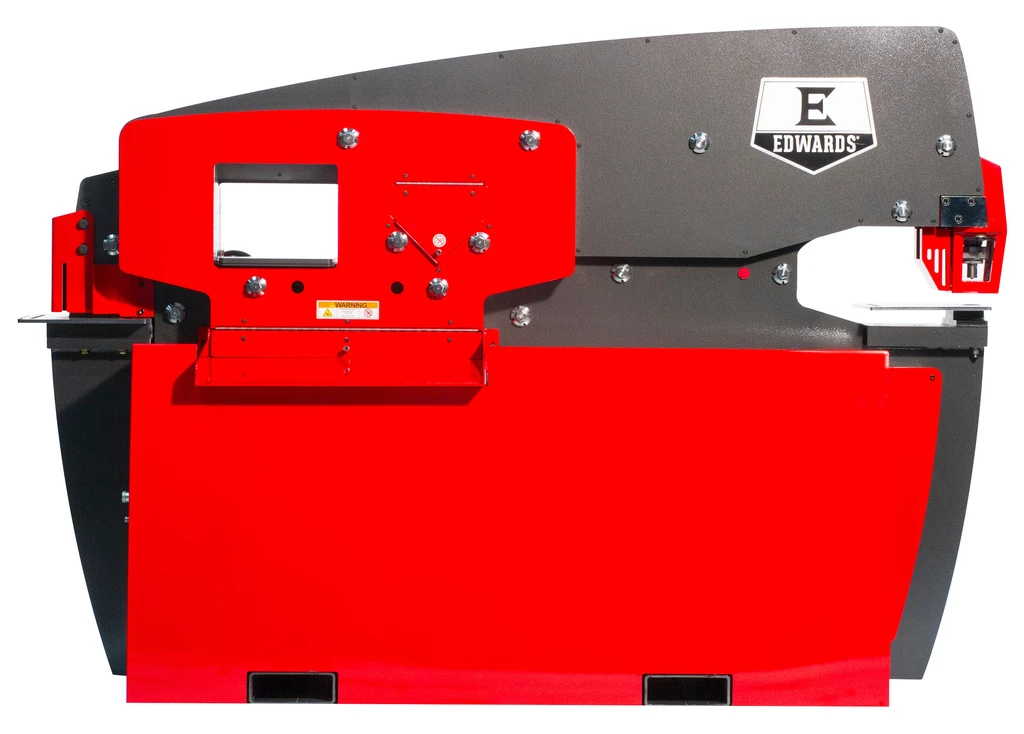

Designed for simultaneous use by two operators, the ELITE 110/65 Ton Ironworker contains two independent power plants. This machine includes 5 Workstations: a punch station with oversized throat depth, a 24" wide flat bar shear, angle shear, coper notcher, and Open Cavity that accepts 4 optional Attachments. ELITE Ironworkers have premium features integrated into their design to maximize efficiency and increase productivity. The Hydraulic Hold-Down, Roller Encoder Measuring System, Swing-Away Stripper Assembly and Quick Change Punch Assembly are designed to increase accuracy and save time on this production machine. The nickel-plated Premium Gauging Tables provide a large work area and add precision, speed and repeatability to your punch projects. Punches are easily changeable, long-lasting and available from 1/8" to 4" diameters along with square, oblong, hex, metric, and custom shapes. The standard PowerLink⢠System increases your capabilities by turning your Ironworker into a power source for our line of Hydraulic Tools.
Features
- ANSI B11.5-1988(02) Compliant Guarding
- Adjustable electric stoke control
- Bright LED lights increases visibility
- Central Lubrication System simplifies Ironworker maintenance
- Durable, heavy-duty Made in USA steel construction
- ETL Certified Controls
- Integrated Lock-out/Tag-out system with multiple location E-Stops (foot pedal, control panel & Punch workstation) for added safety
- Two independent power plants produce true Dual Operation
