Product Description
Breakaway pin kit for DCD 00560-280 series breakaway connector. Kit of 17 pins.

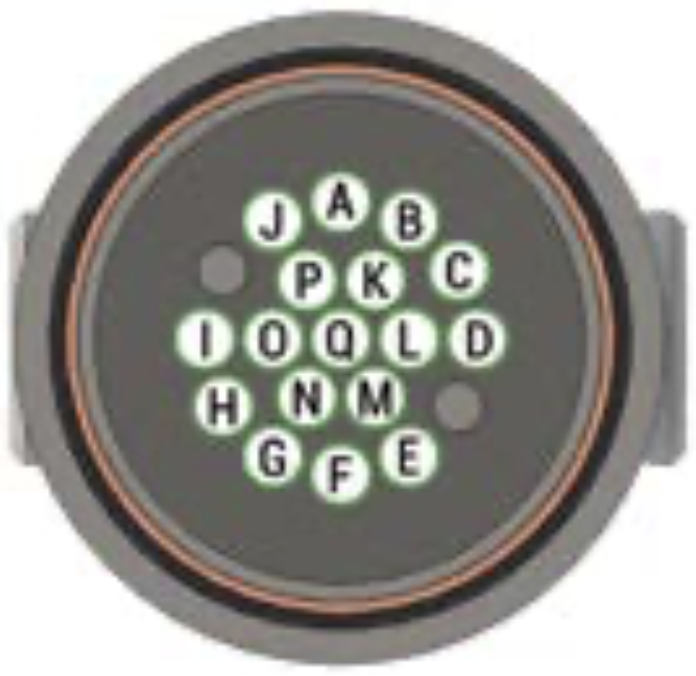

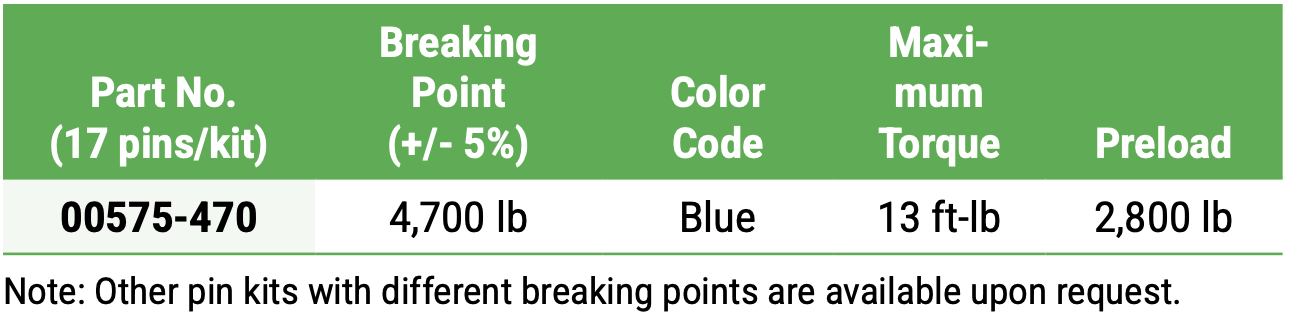

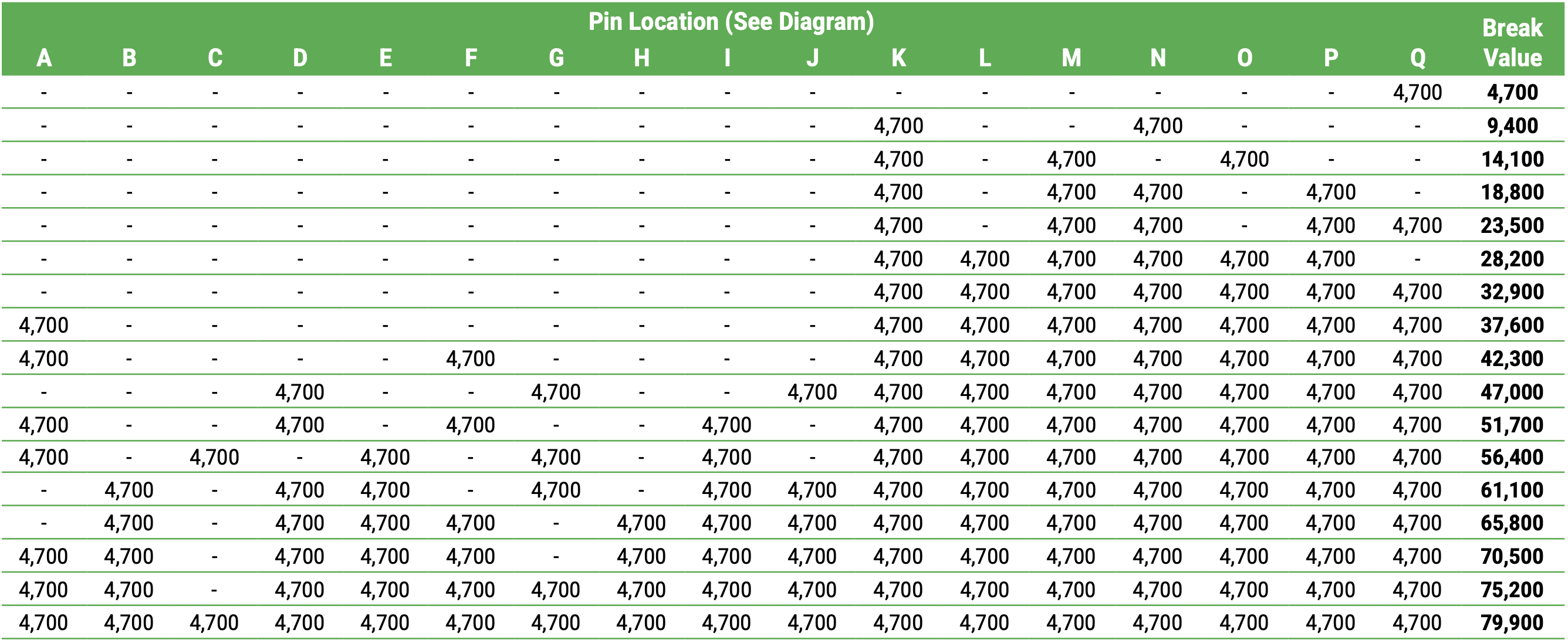

The following table provides several suggestions for different pin configurations in the 00560-280S Breakaway Connector and the ultimate break value that will result from each one. With 17 potential pin locations, it is important to balance the pins in a particular way. These values are all achievable with a set of 00575-470 pins, but other pin kits with different break values are available upon request.
Note: Uneven pin distribution may result in up to 10% lower breaking point.
Product Videos
Custom Field
Product Type Breakaway Pin Kit
Country of Origin CA
Working Load Limit 4,700 lb
