Product Description
Description

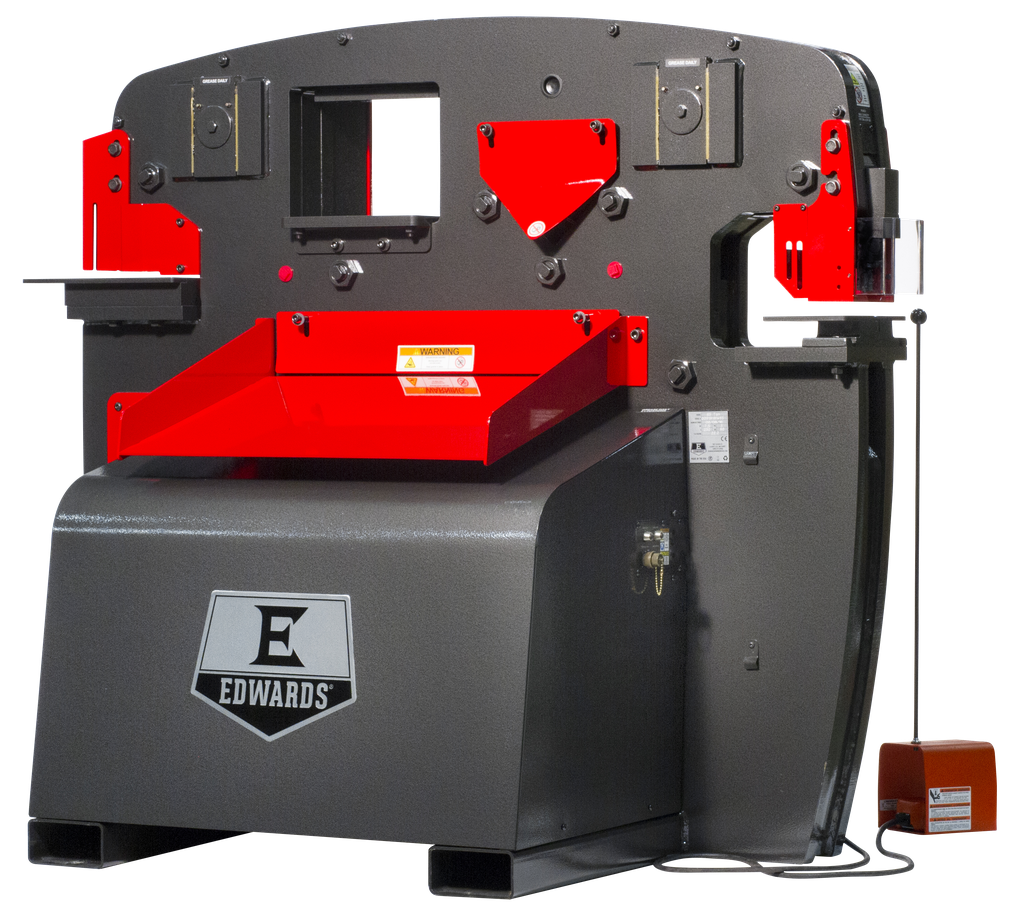

The 65 Ton is the ultimate mid-range Ironworker. Flexible enough to handle a wide variety of projects, this 5 workstation machine is extremely versatile. It allows for fast and easy transitions between fabrication operations: punch, shear, notch, bend or cope all in one machine. Other features include an electric foot pedal with integrated jog control, bright LED lights to increase visibility and heavy-duty Made in USA steel construction. Accepting 14 interchangeable Attachments and 17 Accessories allows an operator to improve productivity and accuracy.
Features
- ANSI B11.5-1988(02) Compliant Guarding
- Adjustable electric stoke control
- Angle Shear blades have 2 corner radii for both thin and thick material and are made of precision tool steel with 2 cutting edges for extended life
- ETL Certified Controls
- Five Workstations: Standard (4) - Punch, Flat Bar Shear, Angle Shear, and Coper Notcher. Open Cavity (1): Customize your ironworker with four optional attachments including Brake, Rod Shear, Multi-Shear, and Pipe Notcher
- Flat Bar Shear blades are made of precision machined, high-quality tool steel with 4 cutting edges for extended life
- Integrated Lock-out/Tag-out system with multiple location E-Stop (foot pedal & control panel) for added safety
- Optimized workstation heights for improved efficiency
- Punches are easily changeable, long-lasting and available from 1/8" to 4" diameters along with square, oblong, hex, metric, and custom shapes
- Vertical movement produces even pressure resulting in precise punching and shearing with minimal distortion that results in extended tooling life
Specifications
- Amps - jpw_amps: 12
- Angle Shear Max Capacity (In.): 5 x 5 x 3/8
- Angle Shear Work Height (In.): 43-1/2
- Coper Notcher Max Capacity (In.): 2-1/2 x 5 x 3/8
- Coper Notcher Work Height (In.): 39-1/2
- Country of Origin: US
- Flat Bar Shear Max Capacity (In.): 3/8 x 24, 1/2 x 14, 1x4
- Flat Bar Shear Max Capacity 1/2": 14
- Flat Bar Shear Max Capacity 3/8": 24
- Flat Bar Shear Max Round (In): 1
- Flat Bar Shear Max Round Capacity (In.): 1
- Flat Bar Shear Max Square (In): 1
- Flat Bar Shear Rating (Tons): 65
- Flat Bar Shear Work Height (In.): 34-1/2
- Gross Weight (Lbs): 4750.0000
- Height: 63.000
- Hydraulic Pump (GPM): 10-1/2
- Hydraulic Reservoir (Gal.): 17.0000
- Hydraulics (GPM): 10-1/2
- Hydraulics (PSI): 3500.0000
- Length: 46.000
- Motor (HP): 7.5 HP 3 ~ 380V, 50 Hz
- Motor Speed (RPM): 1765
- Overall Dimensions (L x W x H) (In.): 45 x 62-1/8 x 57
- Punch Max Capacity (In.): 1-1/16 diam. in 3/4 mild steel
- Punch Open Height (In): 8-3/4
- Punch Rating (Tons): 65
- Punch Shut Height (In): 6-15/16
- Punch Stroke (In.): 1-13/16
- Punch Work Height (In.): 36-9/16
- Rating (Tons): 65.0000
- Reservoir (Gal.): 17
- Shipping Dimensions (L x W x H) (In.): 46 x 69 x 63
- Valve Pressure (PSI): 3500.0000
- Warranty: 1 Year
- Weight: 4655.000
- Width: 69.000
