Product Description
Description

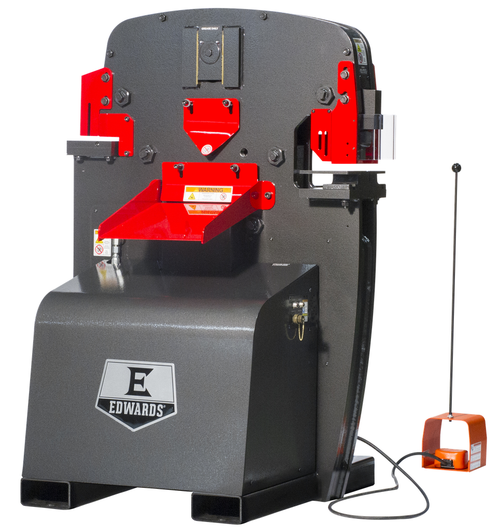

The 55 Ton Ironworker provides more than enough power for larger projects and offers the ability to customize one of its 4 Workstations with 11 interchangeable Attachments. There are 17 Accessories that improve operator accuracy and productivity. Great for general use from medium size shops to full factory maintenance departments.
Features
- ANSI B11.5- 1988(02) Compliant Guarding
- Adjustable electric stoke control
- Available with PowerLink System to increase your capabilities with our ever expanding-line of Hydraulic Tools
- Compact machine that allows for fast and easy transitions between fabrication operations: punch, shear, notch, bend, or cope all in one machine
- ETL/UL Approved Controls
- Integrated E-Stop, Lock-out/Tag-out
- Interchangeable Attachments available to tailor the Ironworker to your needs
- Optimized workstation heights for improved efficiency
Specifications
- Amps - jpw_amps: 23
- Angle Shear Max Capacity (In.): 3 x 3 x 3/8, 4 x 4 x 1/4
- Angle Shear Max Capacity 1/4": 4 x 4
- Angle Shear Work Height (In.): 39-7/8
- Configurator Option Type: Base Machine
- Country of Origin: US
- Flat Bar Shear Max Capacity (In.): 3/8 x 14, 1/2 x 12, 3/4 x 4
- Flat Bar Shear Max Capacity 1/2": 12
- Flat Bar Shear Max Capacity 3/4": 4
- Flat Bar Shear Max Capacity 3/8": 14
- Flat Bar Shear Max Round (In): 7/8
- Flat Bar Shear Max Square (In): 7/8
- Flat Bar Shear Rating (Tons): 55
- Flat Bar Shear Work Height (In.): 34-1/2
- Gross Weight (Lbs): 2480.0000
- Height: 62.000
- Hydraulic Pump (GPM): 3-1/2
- Hydraulics (GPM): 3-1/2
- Hydraulics (PSI): 2500.0000
- Length: 45.000
- Motor (HP): 5 HP 1 ~ 230V
- Motor Amps: 23
- Motor Speed (RPM): 1725
- Open Station Open Height (In): 8-1/8
- Open Station Shut Height (In): 6-7/8
- Open Station Stroke (In): 1-1/4
- Open Station Throat Depth (In): 11-3/16
- Open Station Work Height (In): 34-1/2
- Open Workstation Throat Depth (In.): 11-3/16
- Open Workstation Work Height (In.): 34-1/2
- Optional Coper Notcher Work Height (In.): 39-1/2
- Overall Dimensions (L x W x H) (In.): 36-1/8 x 44-3/8 x 55-1/4
- Product Dimensions (In.): 44-3/8 x 36-1/8 x 55-1/4
- Punch Max Capacity (In.): 1-1/16 diam. in 5/8 mild steel
- Punch Open Height (In): 8-1/8
- Punch Rating (Tons): 55
- Punch Shut Height (In): 6-7/8
- Punch Stroke (In.): 1-1/4
- Punch Throat Depth (In.): 7-1/2
- Punch Work Height (In.): 36-9/16
- Rating (Tons): 55.0000
- Reservoir (Gal.): 7
- Shipping Dimensions (L x W x H) (In.): 45 x 51 x 62
- Valve Pressure (PSI): 2750.0000
- Warranty: 1 Year
- Weight: 2430.000
- Width: 51.000
