Product Description
Description

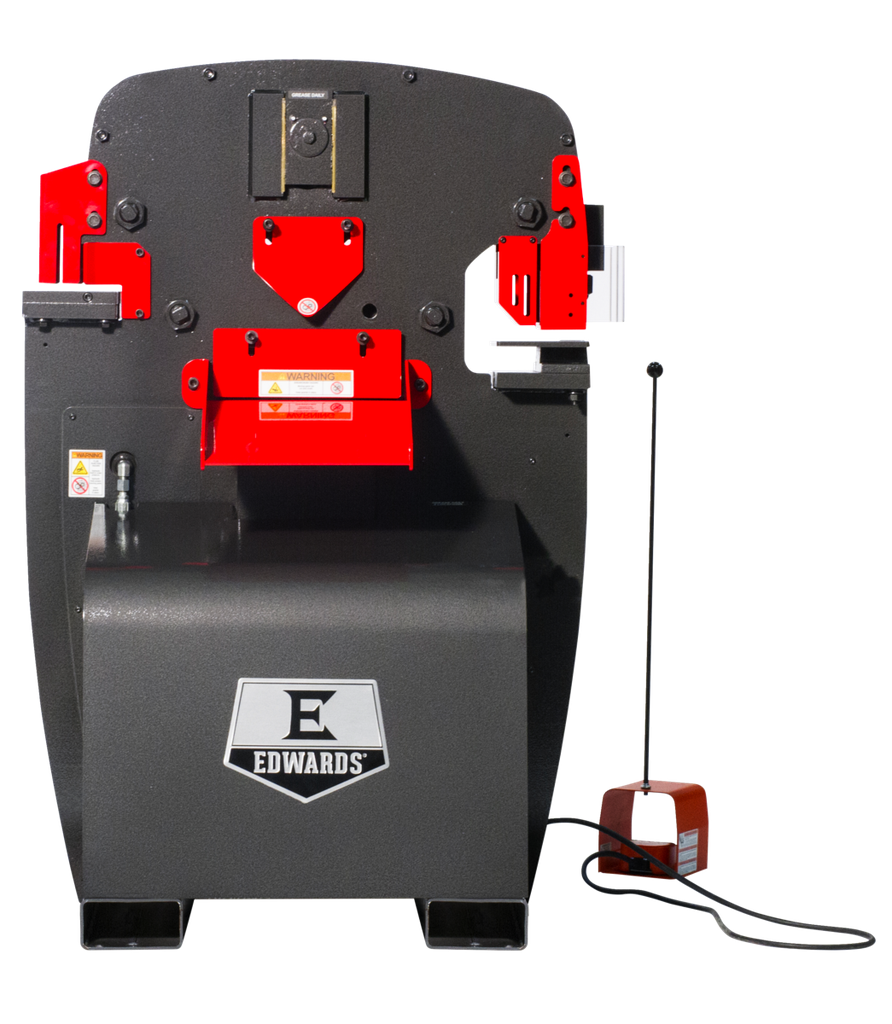

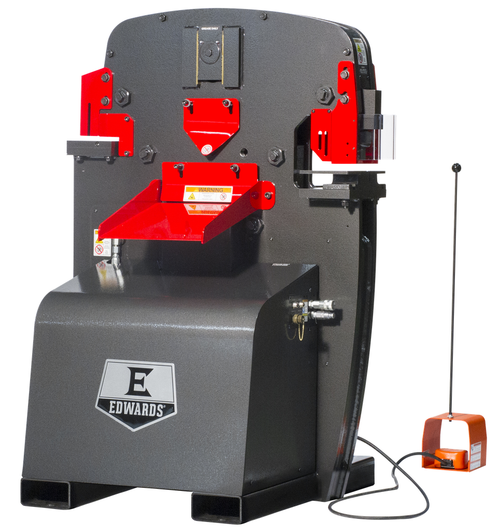

Ideal for a small to medium workshop that needs greater capacity, the 50 Ton Ironworker is durable and heavy-duty made in the USA steel construction. This Ironworker has 4 Workstations which include Punch, Flat Bar Shear, Angle Shear, and a dedicated factory-installed Coper Notcher. This compact machine allows for fast and easy transitions between fabrication operations. Accepting 9 Attachments and 16 Accessories, this Ironworker can tackle any project you throw at it.
Features
- ANSI B11.5-1988(02) Compliant Guarding
- Adjustable electric stoke control
- Angle Shear blades have 2 corner radii for both thin and thick material and are made of precision tool steel with 2 cutting edges for extended life
- Bright LED lights increases visibility
- Electric foot pedal with integrated jog control
- Flat Bar Shear blades are made of precision machined, high-quality tool steel with 4 cutting edges for extended life
- Integrated Lock-out/Tag-out system with multiple location E-Stop (foot pedal & control panel) for added safety
- Optimized workstation heights for improved efficiency
- Punches are easily changeable, long-lasting and available from 1/8" to 4" diameters along with square, oblong, hex, metric, and custom shapes
- Vertical movement produces even pressure resulting in precise punching and shearing with minimal distortion that results in extended tooling life
Specifications
- Amps - jpw_amps: 8
- Angle Shear Max Capacity (In.): 3 x 3 x 3/8, 4 x 4 x 1/4
- Angle Shear Max Capacity 1/4": 4 x 4
- Angle Shear Work Height (In.): 39-7/8
- Coper Notcher Max Capacity (In.): 2 x 3 x 5/16
- Coper Notcher Work Height (In.): 39-1/2
- Country of Origin: US
- Flat Bar Shear Max Capacity (In.): 1/2" x 10", 3/4" x 4"
- Flat Bar Shear Max Capacity 1/2": 10
- Flat Bar Shear Max Capacity 3/4": 4
- Flat Bar Shear Max Round (In): 3/4
- Flat Bar Shear Max Square (In): 3/4
- Flat Bar Shear Rating (Tons): 50
- Flat Bar Shear Work Height (In.): 34-1/2
- Gross Weight (Lbs): 2020.0000
- Height: 62.000
- Hydraulic Pump (GPM): 3-1/2
- Hydraulics (GPM): 3-1/2
- Hydraulics (PSI): 2500.0000
- Length: 45.000
- Motor (HP): 5 HP 3 ~ 380V, 50 Hz
- Motor Speed (RPM): 1725
- Overall Dimensions (L x W x H) (In.): 36-3/4 x 36-1/8 x 54-1/2
- Product Dimensions (In.): 36-3/4 x 36-1/8 x 54-1/2
- Punch Max Capacity (In.): 1 diam. in 5/8 mild steel
- Punch Open Height (In): 8-1/8
- Punch Rating (Tons): 50
- Punch Shut Height (In): 6-1/4
- Punch Stroke (In.): 1-7/8
- Punch Throat Depth (In.): 7
- Punch Work Height (In.): 36-9/16
- Rating (Tons): 50.0000
- Reservoir (Gal.): 7
- Shipping Dimensions (L x W x H) (In.): 45 x 51 x 62
- Valve Pressure (PSI): 2750.0000
- Warranty: 1 Year
- Weight: 1980.000
- Width: 51.000
