Product Description
The GEARWRENCH family of torque wrenches & torque products offer the latest innovations in torque measurement. Included in the line are micrometer, tire shop, beam and electronic torque wrenches, as well as, torque multipliers. The micrometer wrenches are available in fixed head and flex head. The fixed head line offers wrenches in 1/4" to 3/4" drives. The flex head wrenches are available in 3/8" and 1/2" drives. The tire shop wrenches feature a rugged tire tread rubber cover on the head intended to specifically be used for checking wheel lug nuts and are available in 3/8" and 1/2" drives. The electronic torque wrenches ensure a more precise fastener torque level and are available in a 3/8" and 1/2" drives. The GEARWRENCH line of torque products allow the user to complete any job where accurate torque is required.
Features
- 1 year limited warranty; calibration accuracy warrantied for 90 days
- 10 available preset torque settings allow you to quickly access frequently repeated applications
- 120XP(TM) head provides a 3 deg ratcheting arc to turn fasteners in narrow spaces
- 3 function modes feature peak torque, angle, and peak angle for additional versatility
- 5 torque measurement units provide a readout in ft-lb, in-lb, Nm, Kg-m, and Kg-cm
- Digitally tracks torque and angle measurements. Vibrating handle, buzzer, and LCD screen alert when target torque is reached
- Knurled aluminum handle lets you grip comfortably, while clearly marked midpoint promotes additional accuracy
- Low profile tube, 15 deg flex teardrop head, and flush mounted on/off switch allow for better access in tight confines
- Meets or exceeds ASME standards and specifications
- Torque accuracy of +/-2% CW and +/-3% CCW between 20% and 100% of wrench capability Angle settings offer +/-1% of reading of angle accuracy
Specifications
- Alt Scale Increments: 0.1 Nm
- ASME Specification: B107.10B107.12B107.28B107.300
- Batteries Included: No
- Battery Type: AA
- Case Color: Molten Orange & Black
- Certified: No
- Country of Origin: TW
- Coupon Headline: 120XP(TM) Electronic Flex Head Torque Wrenches with Angle
- Drive Tang Size: 3/8 in
- Family Name: 120XP(TM)
- Finish: Full Polish Chrome
- Flexible: Yes
- Foreign Trade Code: 8466100175
- Head Length: 2.12 in
- Head Thickness: 0.55 in
- Head Thickness Less Tang: 0.72 in
- Head Width: 1.3 in
- Included Storage: Injection Molded Case with Removable Lid and Foam Insert
- Knurled: Yes

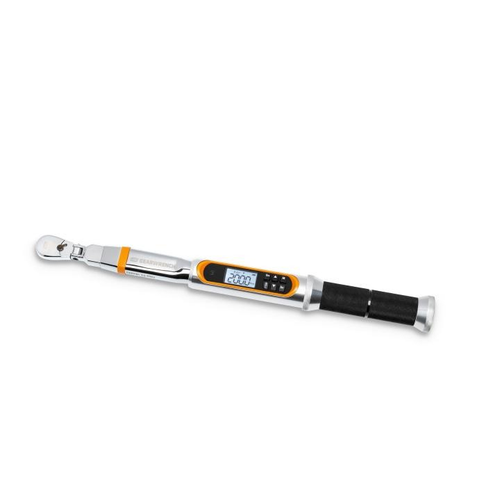

- Long Description: 3/8" 120XP(TM) Flex Head Electronic Torque Wrench with Angle
- Material: Alloy Steel
- Maximum Torque (Alt Scale): 135 Nm
- Maximum Torque (Primary Scale): 100 ft/lb
- Minimum Torque (Alt Scale): 13.5 Nm
- Minimum Torque (Primary Scale): 10 ft/lb
- Number of Batteries: 2
- Overall Height: 1.75 in
- Overall Length: 15.87 in
- Overall Width: 1.75 in
- Packaging: Boxed
- Primary Scale Increments: 0.1 ft/lb
- Set: No
- Size: 5 deg - 999 deg Angle
- Table Description: 3/8" 120XP(TM) Flex Head Electronic Torque Wrench with Angle
- Tether Ready: No
- Tooth Count: 120
- Torque Accuracy (20-100% of Full Range): +/- 2% Clockwise
- Torque Range cm-kg: 138 - 1380 kg/cm
- Torque Range In. Lbs.: 120 - 1200 in/lb
- Type 1: Electronic
- Warranty: 90 Days Calibration/1 Year on Parts
- Weight: 3.858 lbs
