Product Description
Description

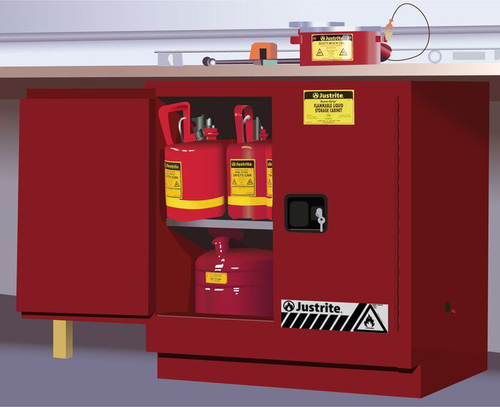

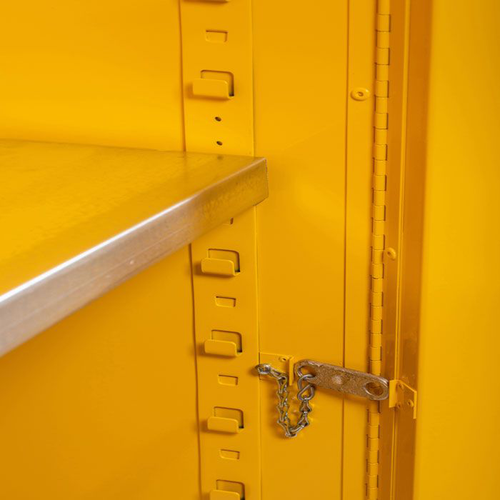

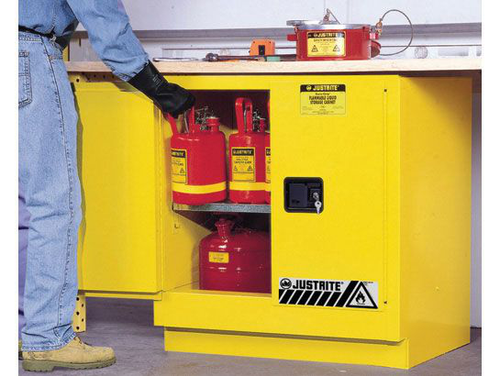

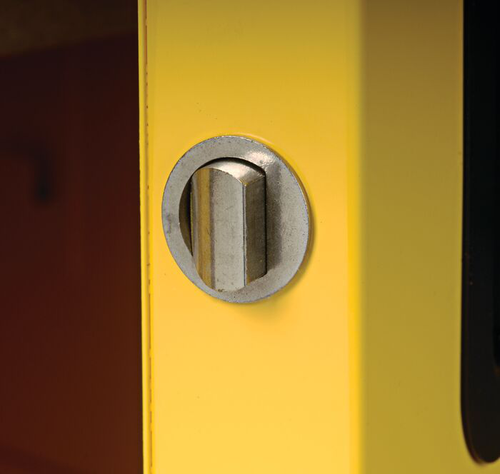

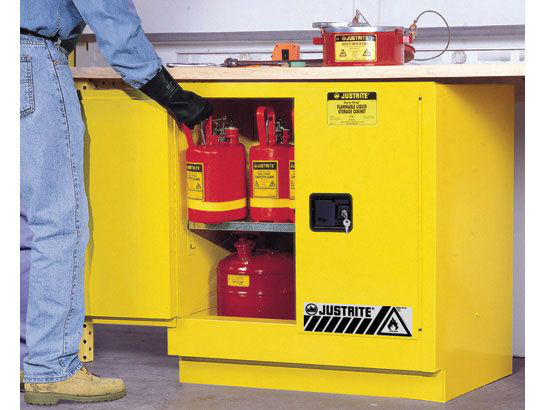

Protect workers, reduce fire risks, and improve productivity by storing flammable fuels and chemicals in code-compliant safety cabinets. Designed to meet OSHA and NFPA standards, Sure-Grip (R) EX cabinets are constructed of sturdy 18-gauge (1-mm) thick double-wall, welded steel with 1-1/2" (38-mm) of insulating air space for fire resistance. High-performance, self-latching doors close easily and securely for maximum protection under fire conditions. Fail-safe closing mechanism ensures three-point stainless steel bullet latching system works every time. For added security, U-Loc (TM) handle comes with a cylinder lock and key set or accepts an optional padlock. Haz-Alert (TM) reflective warning labels are highly visible under fire conditions or during power outages when illuminated with a flashlight. Patented SpillSlope (R) galvanized steel shelves direct spills to back and bottom of a leakproof 2" (51-mm) bottom sump. They adjust on 3" (76-mm) centers for versatile storage. Cabinets also feature dual vents with flame arresters, four adjustable self-leveling feet, grounding connector, and trilingual warning label. Durable lead-free epoxy/polyester powder-coat finish provides excellent chemical resistance. Manual-close door(s) opens to a full 180 degrees and self-latches when pushed closed. Self-close door(s) shuts and latches automatically when a fusible link melts at 165 deg F (74oC) under fire conditions. Unique, concealed self-closing mechanism offers obstruction-free access to contents. All door styles meet OSHA and NFPA 30; self-close door styles also meet NFPA 1 and the International Fire Code. Most cabinets are FM approved and all come with a ten-year warranty. Take advantage of undercounter space to safely store flammable liquids. Each cabinet is sized and fitted with a 3-1/2"H x 2-1/2"D (89-mm x 64-mm) kickplate that allows workers to walk around the workstation comfortably. These cabinets have all the great features and benefits of our classic cabinets as outlined below.
Features
- Complies with OSHA, NFPA 30 and NFPA 1
- Designed for the safe storage of chemicals and flammable liquids beneath countertops and workbenches
- Exterior dimensions of 35 in x 35 in x 22 in (889 mm x 889 mm x 559 mm)
- Fire tested and FM-approved
- Recessed toe kick improves ergonomics and mounts flush with other cabinets
- Storage capacity of 22 gallons (83 liters) of flammable liquids
Specifications
- Adjustable Shelves: Yes
- Capacity: 22 gallon
- Color: Yellow
- Complies with NFPA Code 30: Yes
- Depth: 22

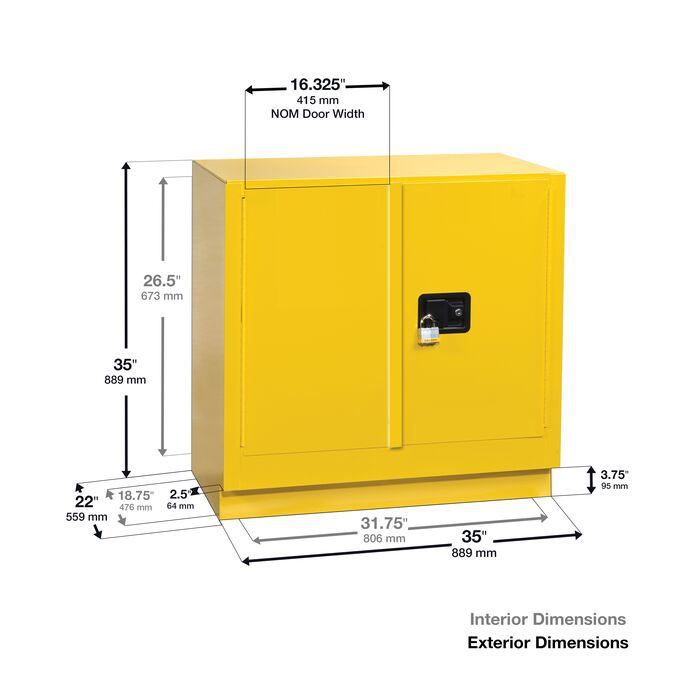

- Dimensions, Exterior: 35" H x 35" W x 22" D | 889mm H x 889mm W x 559mm D
- Dimensions, Interior: 27.4" H x 31.8" W x 18.8" D | 695mm H x 806mm W x 476mm D
- Door Type: Manual
- FM Approval: Yes
- Height: 35 Inches
- Liter Capacity: 83
- Material Specifications: 18-Gauge CR Steel
- Net Weight: 163.0 lbs | 73.9 kg
- Number of Doors: 2
- Number of Shelves: 1
- OSHA Compliance: Yes
- Width: 35 Inches
