Product Description
This product is specifically designed for installation of PVC or PE duct by vibratory plow and is particularly suited to agricultural applications because of its quick installation and removal.
DCD Plow-Grips are comprised of a stainless steel body and a clevis head with eight links of hardened steel chain attached and hardened stainless steel expanding jaws with teeth that grip the inside of the ducting.

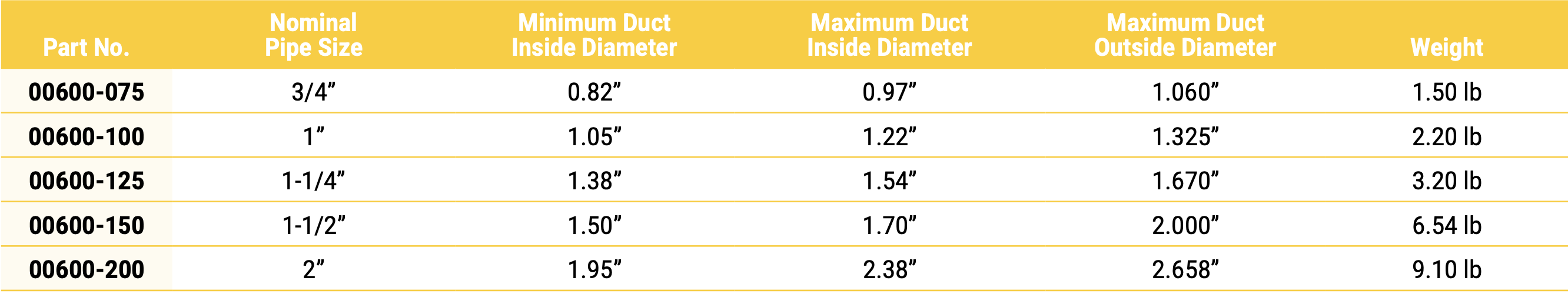

Since there are various outside and inside diameters for ducting, the DCD plow grip now has a single sleeve with a different bore size at each end. Should your ducting not fit at one end, reverse the sleeve and check the other end. The two sleeve sizes will cover 80 lb and 100 lb PE duct and Schedule 40 up to SDR 26 PVC duct as well as CSA B137.1 PE duct.
To assemble the Plow-Grip to the ducting, the head is pushed against a spring which contracts the hardened steel jaws. The Plow-Grip can then be sleeved over the ducting. When the head is released, the jaws expand inside the duct and bite into the duct wall. As the pulling load is applied, it increases the bite of the jaws. When the pull is complete, pushing the head down will again contract the jaws allowing the Plow-Grip to be removed from the ducting.
