Product Description

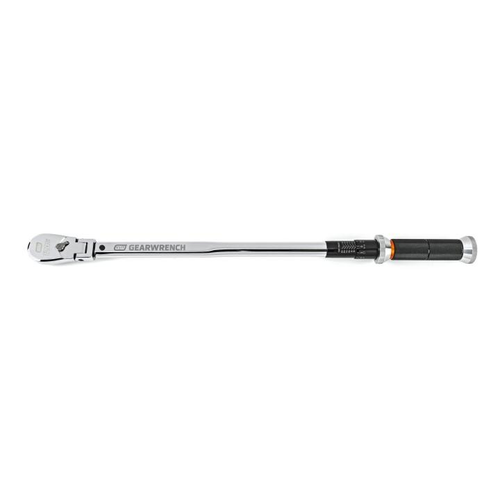

The GEARWRENCH family of torque wrenches & torque products offer the latest innovations in torque measurement. Included in the line are micrometer, tire shop, beam and electronic torque wrenches, as well as, torque multipliers. The micrometer wrenches are available in fixed head and flex head. The fixed head line offers wrenches in 1/4" to 3/4" drives. The flex head wrenches are available in 3/8" and 1/2" drives. The tire shop wrenches feature a rugged tire tread rubber cover on the head intended to specifically be used for checking wheel lug nuts and are available in 3/8" and 1/2" drives. The electronic torque wrenches ensure a more precise fastener torque level and are available in a 3/8" and 1/2" drives. The GEARWRENCH line of torque products allow the user to complete any job where accurate torque is required.
Features
- 1 year limited warranty; calibration accuracy warrantied for 90 days
- 100% steel construction offers lasting strength and durability
- 120XP(TM) head provides a 3 deg ratcheting arc to turn fasteners in narrow spaces
- Enclosed ratchet head design resists dirt infiltration for continuous and efficient execution
- Injection molded case with removable lid and EVA foam insert for secure storage and convenience
- Knurled aluminum handle lets you grip comfortably, while clearly marked midpoint promotes additional accuracy
- Low profile tube, teardrop head, and flush mounted on/off switch allow better access in tight confines
- Meets or exceeds ASME B107.300 and exceeds ANSI specifications on load and cycle
- Scale markings are highly visible and easy to read
- Torque accuracy of +/- 3% CW in the upper 80% of wrench capability delivers high performance
Specifications
- Alt Scale Increments: 0.11 Nm
- ANSI Specification: Exceeds on Load and Cycle
- ASME Specification: B107.300
- Case Color: Molten Orange & Black
- Certified: No
- Certified Model Number: 85174CERT
- Country of Origin: TW
- Coupon Headline: 120XP(TM) Micrometer Torque Wrenches
- Drive Tang Size: 3/8 in
- Finish: Full Polish Chrome
- Flexible: No
- Foreign Trade Code: 8466100175
- Head Thickness: 0.55 in
- Head Thickness Less Tang: 0.55 in
- Head Width: 1.25 in
- Included Storage: Injection Molded Case with Removable Lid and Foam Insert
- Knurled: Yes
- Long Description: 3/8" Drive 120XP(TM) Micrometer Torque Wrench 30-250 in/lbs.
- Marking Style: Laser Etched with Secondary Hard Stamp
- Material: Alloy Steel
- Maximum Torque (Alt Scale): 23 Nm
- Maximum Torque (Primary Scale): 250 in/lb
- Minimum Torque (Alt Scale): 4 Nm
- Minimum Torque (Primary Scale): 30 in/lb
- Overall Height: 0.55 in
- Overall Length: 18.25 in
- Overall Width: 1.25 in
- Packaging: Boxed
- Primary Scale Increments: 1 in/lb
- Repair Kit: 81227P
- Set: No
- Table Description: 3/8" Drive 120XP(TM) Micrometer Torque Wrench 30-250 in/lbs.
- Tether Ready: No
- Tooth Count: 120
- Torque Accuracy (20-100% of Full Range): +/- 3% Clockwise
- Type 1: Micrometer
- Warranty: 90 Days Calibration/1 Year on Parts
- Weight: 3.400 lbs
