Product Description
Description

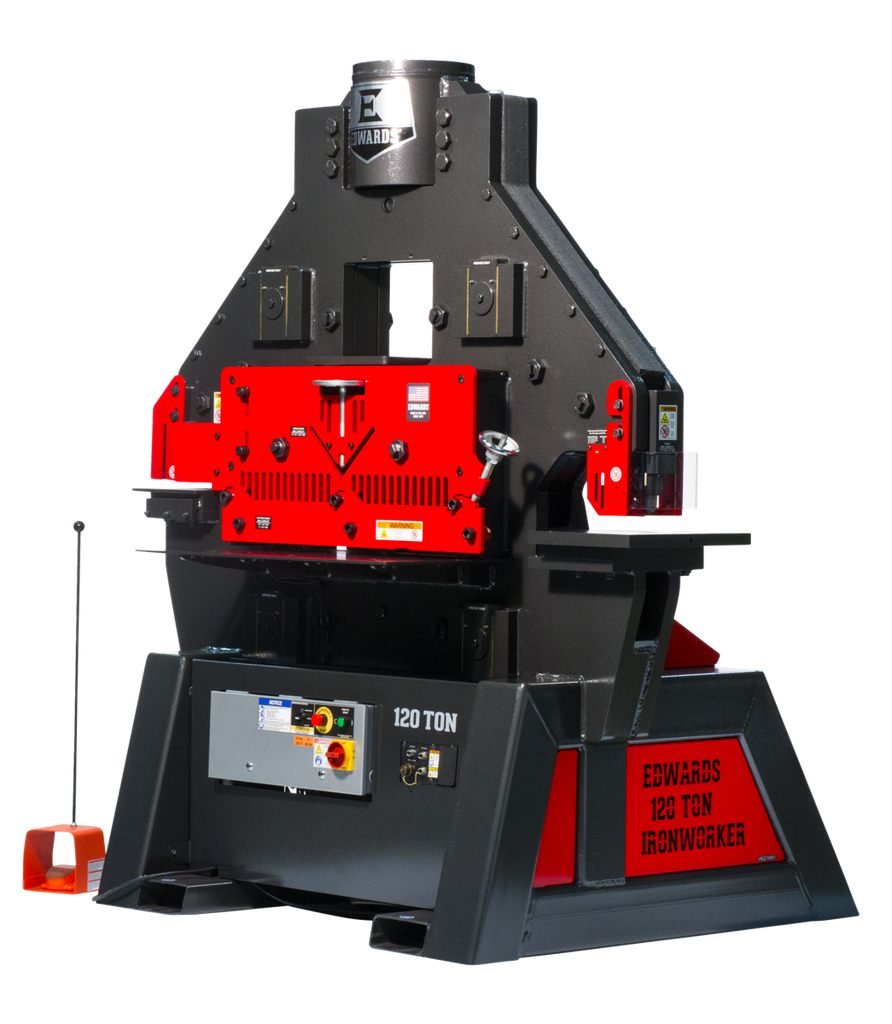

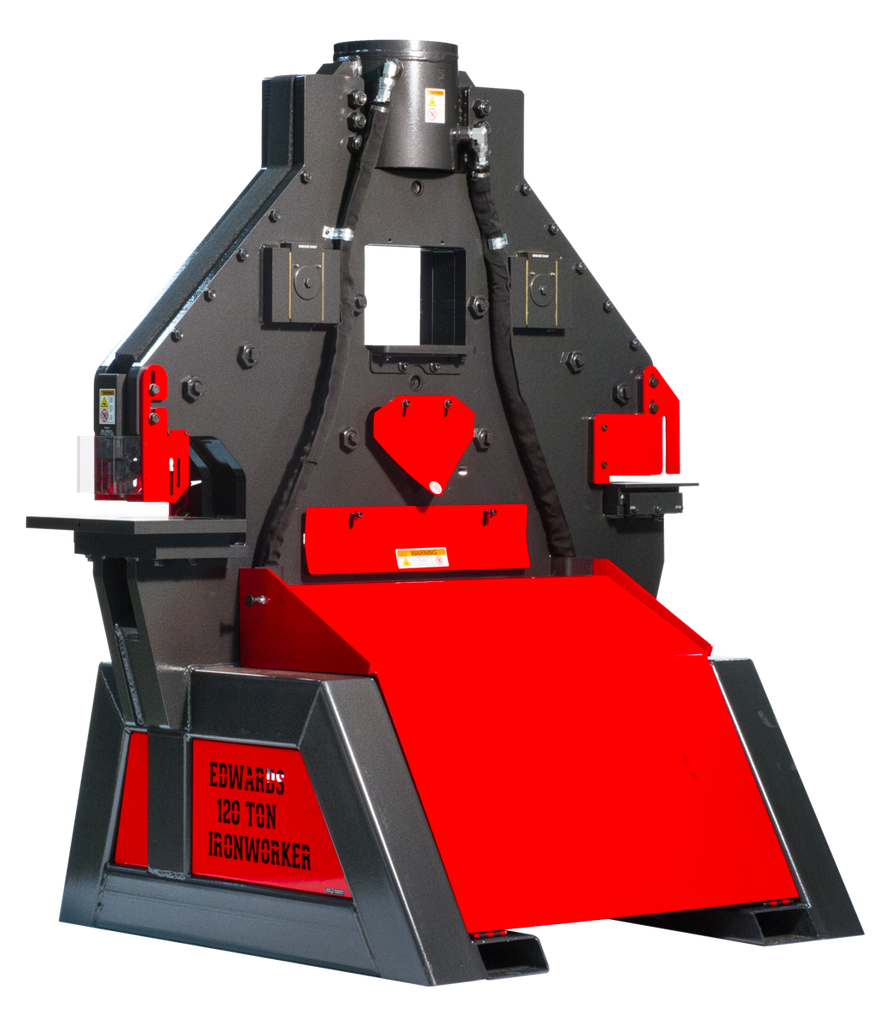

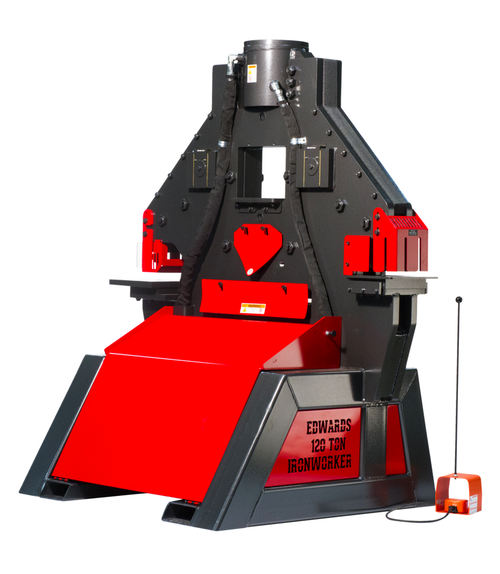

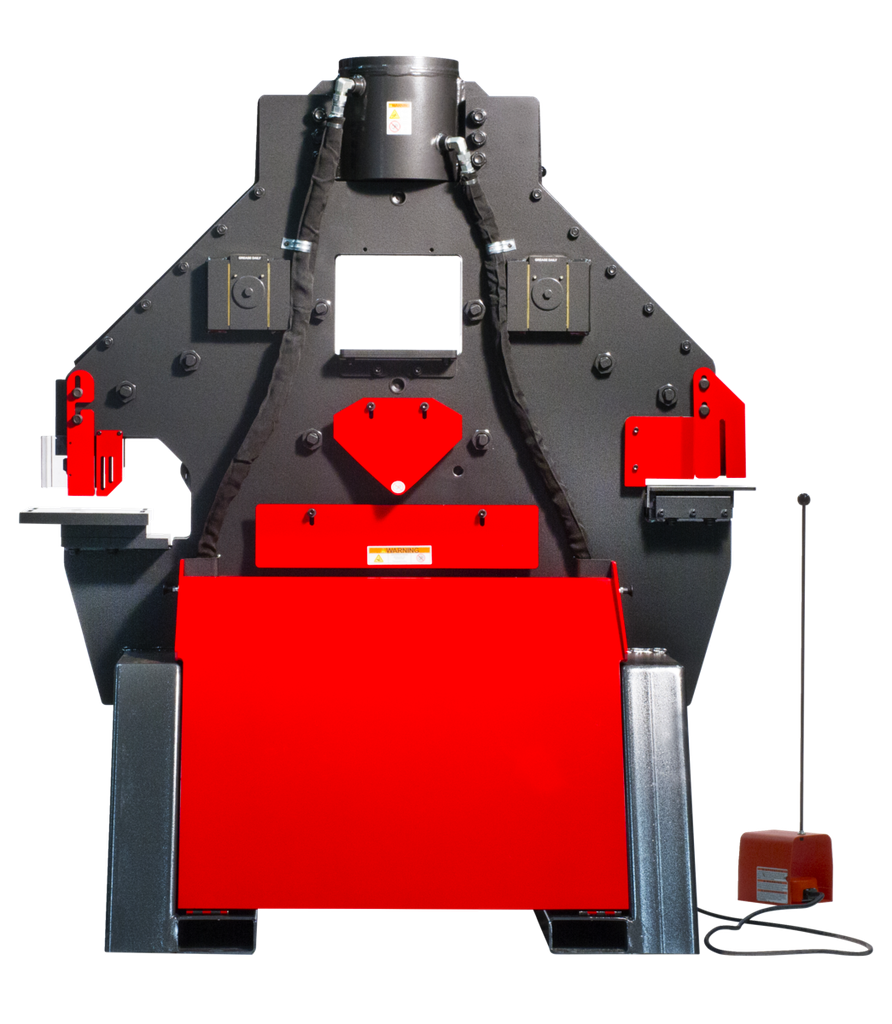

Our most powerful Ironworker, the 120 Ton offers the largest capacity and most flexibility, with five workstations that include a punch, flat bar shear, angle shear, coper notcher, and open cavity that accepts four attachments. Further customize the Ironworker 12 additional attachments and 15 accessories. The Angle Shear blades have 2 corner radii and are made of precision tool steel with 2 cutting edges, while the Flat Bar Shear blades are made of precision machined, high-quality tool steel with 4 cutting edges. The longer stroke length and increased capacity provided by this Ironworker allows it to handle the most heavy-duty projects.
Features
- ANSI B11.5-1988(02) Compliant Guarding
- Adjustable electric stoke control
- Bright LED lights increases visibility
- Durable, heavy-duty Made in USA steel construction
- ETL Certified Controls
- Electric foot pedal with integrated jog control
- Integrated Lock-out/Tag-out system with multiple location E-Stop (foot pedal & control panel) for added safety
- Optimized workstation heights for improved efficiency
- Punches are easily changeable, long-lasting and available from 1/8" to 4" diameters along with square, oblong, hex, metric, and custom shapes
- Vertical movement produces even pressure resulting in precise punching and shearing with minimal distortion that results in extended tooling life
Specifications
- Amps - jpw_amps: 26
- Angle Shear Max Capacity (In.): 6 x 6 x 1/2
- Angle Shear Max Capacity 1/2": 6 x 6
- Angle Shear Work Height (In.): 52-1/2
- Coper Notcher Max Capacity (In.): 3 x 6 x 1/2
- Coper Notcher Work Height (In.): 40
- Country of Origin: US
- Flat Bar Shear Max Capacity (In.): 1/2 x 24, 1 x 12
- Flat Bar Shear Max Capacity 1": 12
- Flat Bar Shear Max Capacity 1/2": 24
- Flat Bar Shear Max Round (In): 1-1/4
- Flat Bar Shear Max Round Capacity (In.): 1-1/4
- Flat Bar Shear Max Square (In): 1-1/4
- Flat Bar Shear Rating (Tons): 120
- Flat Bar Shear Work Height (In.): 33-1/4
- Gross Weight (Lbs): 5975.0000
- Height: 87.000
- Hydraulic Pump (GPM): 24
- Hydraulic Reservoir (Gal.): 17.0000
- Hydraulics (GPM): 24
- Hydraulics (PSI): 3800.0000
- Length: 60.000
- Motor (HP): 10 HP 3 ~ 208V
- Motor Amps: 26
- Motor Speed (RPM): 1770
- Overall Dimensions (L x W x H) (In.): 60 x 60 x 84
- Product Dimensions (In.): 60 x 60 x 84
- Punch Max Capacity (In.): 1-1/2 diam. in 1 mild steel
- Punch Open Height (In): 9-1/8
- Punch Rating (Tons): 120
- Punch Shut Height (In): 7-1/8
- Punch Stroke (In.): 2
- Punch Work Height (In.): 36-5/8
- Rating (Tons): 120.0000
- Reservoir (Gal.): 17
- Shipping Dimensions (L x W x H) (In.): 60 x 67 x 87
- Valve Pressure (PSI): 3800.0000
- Warranty: 1 Year
- Weight: 5856.000
- Width: 67.000
