Product Description

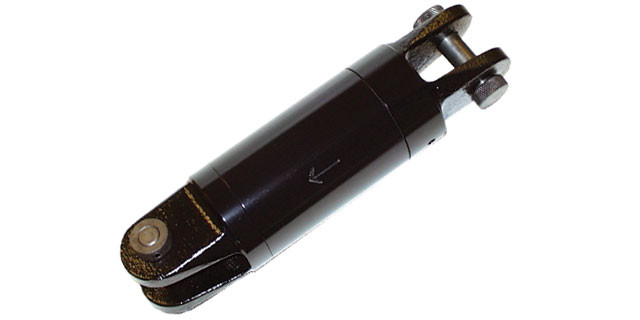

Dub-Swivel 3-3/4" Diameter 20,000lb Swivel
Product Information:
These swivels offer a clevis connection at both ends with hardened, lockable clevis pins. This style of swivel is the most common type and is the best for distributing side loads applied on the swivel due to its ability to pivot at either end. It does not allow the operator to push back without proper care and attention or the swivel may fold back on itself. When rotation is recommended, the line must be pulled straight or damage may occur to the clevis ends
The clevis pins are available as spare parts and must never be replaced with any type of pin not manufactured by DCD Design
Part No.: 00508-210
5:1 Safe Working Load: 20,000 lbs.
Ultimate Load: 100,000 lbs.
A: 3-3/4"
B: 1-1/2"
C: 1"
D: 13-1/2"
E: 1-9/16"
F: 1-1/16"
Weight: 26.50 lbs.
Clevis Pin Kit: 00508-010
